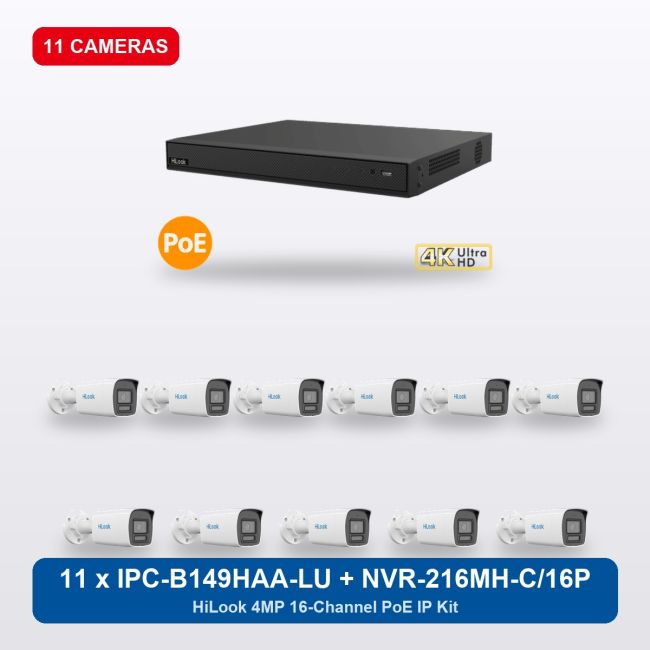

HiLook by Hikvision 4MP 16Ch IP Kit with 11 x IPC-B149HAA-LU 30m ColorVu Bullet Cameras
Product Features
What’s included
- 1 x NVR-216MH-C/16P
- 11 x IPC-B149HAA-LU
Optional
Plug and Play Kit
- 11 x Cat5e 20m Ready Made Cable
Main Camera Features:
- 4 MP resolution
- 2.8 mm fixed lens
- ColorVu 3.0 smart hybrid light: infrared, or white light for colour at night, up to 30m
- Built-in microphone
- H.265+/H.265/H.264+/H.264, WDR, 3D DNR, BLC, HLC
- Powered by PoE from the NVR
NVR Features
- 16-channel IP recorder with 16 built-in PoE ports
- Plug and play: cameras are found and added automatically
- 8-ch @ 1080p (records up to 8MP) decoding; 160 Mbps incoming bandwidth
- H.265+/H.265/H.264+/H.264 compression
- HDMI/VGA output, 2 SATA interfaces
- Remote viewing with the free HiLookVision or Hik-Connect app
Who is this 4MP IP kit for?
A complete wired IP system: the NVR-216MH-C/16P 16-channel PoE NVR with 11 x IPC-B149HAA-LU 4MP bullet cameras. One Cat5e/Cat6 cable per camera carries both power and video, so there are no camera power supplies to fit. It suits houses, shops, offices and small commercial sites, and leaves 5 channels free to add cameras later. Already have coax cabling? An HD-TVI kit can reuse it.
What you’ll need with it
- A surveillance-grade hard drive — choose one from the options and we fit and format it; 8TB+ suits a 11-camera 4MP system.
- Cat5e/Cat6 cable to each camera position (up to 100m per run) — the optional Plug and Play Cable covers 11 x 20m runs — and a network cable from the NVR to your router.
- An HDMI screen for setup; day to day most people use the app.
Frequently asked questions
Do the cameras need their own power?
No — the NVR’s PoE ports power them over the network cable.
Is the night vision in colour?
Yes — smart hybrid light switches to white light to record in colour, or stays on infrared when you prefer no visible light.
Does it record sound?
Yes — each camera has a built-in microphone.
Is a hard drive included?
Not by default — pick one from the Hard Drive option and we fit and format it.
Is there a monthly fee?
No — recording is local to the NVR and the app is free.
Technical Specification
| NVR-216MH-C/16P Recorder | |
| IP Channels | 16 |
| PoE | 16 independent PoE ports |
| Incoming Bandwidth | 160 Mbps |
| Decoding | 8-ch @ 1080p (records up to 8MP) |
| Compression | H.265+/H.265/H.264+/H.264 |
| HDD | 2 x SATA |
| IPC-B149HAA-LU Camera (x11) | |
| Resolution | 4 MP |
| Lens | 2.8 mm fixed |
| Night Vision | ColorVu 3.0 smart hybrid light: infrared, or white light for colour at night, up to 30m |
| Audio | Built-in microphone |
| Features | WDR, 3D DNR, BLC, HLC |
| Power | 12 VDC or PoE |
Further reading: Which HiLook NVR do I need? · Turret vs bullet vs dome · HiLook ColorVu 3.0 explained
| Product Code | NVR-216MH-C/16P + 11 x IPC-B149HAA-LU |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Colour | White |
| Colour | White |
| Product Type | IP CCTV Kit |
| Max Resolution | 4MP |
| Number of Cameras | 11 Cameras |
| Night Vision | ColorVu |
| Max No. of Channels | 16 ch |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 30 m |
| Audio I/O | Built-in mic |
| Power Features | PoE from the NVR (802.3af) |
