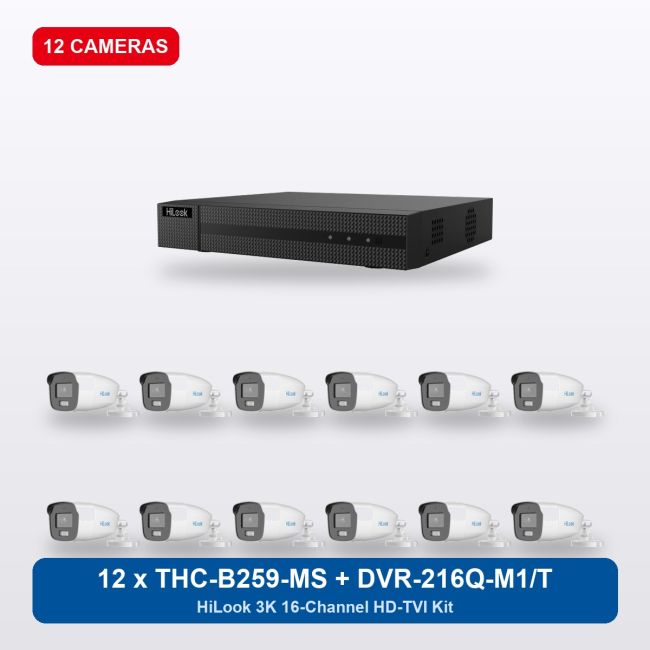

HiLook by Hikvision 5MP 16Ch Kit with 12 x THC-B259-MS 40m ColorVu Lite Bullet Cameras
Product Features
What’s included
- 1 x DVR-216Q-M1/T
- 12 x THC-B259-MS
Optional: Plug and Play Kit
- 12 x Ready Made 20m BNC Cable
- 3 x Power Supply - 12 V 4 A
Main Camera Features:
- 3K (5MP, 16:9) resolution
- 2.8 mm fixed focal lens
- ColorVu Lite: full-colour night vision with up to 40m warm white light
- Audio over coaxial cable, built-in mic
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP66
DVR Features
- 16-channel 5-in-1 recorder: HD-TVI / AHD / CVI / CVBS / IP, up to 4MP Lite / 5MP
- Two-way audio over coax on all HD-TVI channels
- Full-channel Motion Detection 2.0
- H.265 Pro+ compression
- 4K UHD output
- 1 SATA interface, 1U metal case
- Remote viewing with the free HiLookVision or Hik-Connect app
Who is this 3K bullet kit for?
A coax (HD-TVI) system in a box: the DVR-216Q-M1/T 16-channel DVR with 12 x THC-B259-MS 3K 5MP bullet cameras (40m ColorVu Lite). It suits homes, shops and small commercial sites, and is a straightforward upgrade for an old analogue system on existing RG59 coax — the DVR takes TVI, AHD, CVI and old analogue cameras on any channel, leaving 4 channels free to add cameras later. Starting from scratch with no cabling? An IP kit is the better long-term platform.
What you’ll need with it
- A surveillance-grade hard drive — choose one from the options and we fit and format it; 4–6TB suits a 12-camera system.
- RG59 coax and 12V power to each camera (pre-made shotgun cables are simplest), plus a 12V multi-way PSU — the DVR does not power cameras. The optional Plug and Play Kit covers this.
- A network cable from the DVR to your router for the app.
Frequently asked questions
Does it record sound?
Yes — each THC-B259-MS has a built-in mic and the DVR-216Q-M1/T records audio over coax.
Will it work with the cameras I already have?
Yes — the DVR auto-detects analogue, TVI, AHD and CVI on each channel, so you can mix and upgrade gradually.
Is the night vision in colour?
Yes — ColorVu Lite white light keeps the picture in colour, up to 40m.
Is a hard drive included?
Not by default — pick one from the Hard Drive option and we fit and format it.
Is there a monthly fee?
No — local recording and a free app.
Technical Specification
| DVR-216Q-M1/T Recorder | |
| Channels | 16 x HD-TVI/AHD/CVI/CVBS |
| Audio | Two-way audio over coax, 1-ch input |
| Recording | 1080p @ 15fps, 4MP Lite @ 15fps per channel |
| Compression | H.265 Pro+ |
| HDD | 1 x SATA |
| Case | 1U, metal |
| THC-B259-MS Camera (x12) | |
| Resolution | 3K (5MP, 16:9) |
| Lens | 2.8 mm fixed |
| Night Vision | ColorVu Lite: full-colour night vision with up to 40m warm white light |
| Audio | Audio over coaxial cable, built-in mic |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Power | 12 VDC |
| Protection | IP66 |
Further reading: NVR vs DVR — which recorder? · Turret vs bullet vs dome
| Product Code | DVR-216Q-M1/T + 12 x THC-B259-MS |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Colour | White |
| Colour | White |
| Product Type | TVI CCTV Kit |
| Max Resolution | 5MP |
| Number of Cameras | 12 Cameras |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 40 m |
| Protection Level, Ingress Protection | IP66 |
| Audio I/O | Built-in mic (audio over coax) |
| Power Features | 12 VDC per camera (DVR does not power cameras) |
