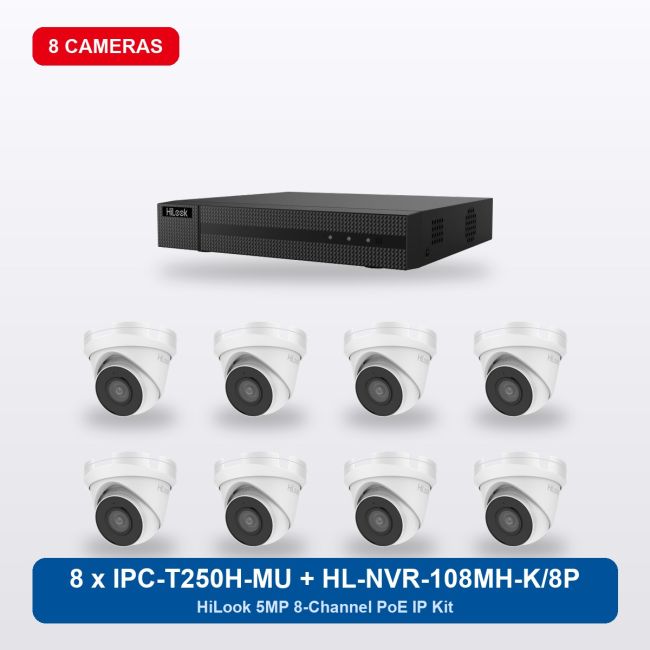

HiLook by Hikvision 5MP 8Ch IP Kit with 8 x IPC-T250H-MU 30m IR Turret Cameras
Product Features
What’s included
- 1 x HL-NVR-108MH-K/8P
- 8 x IPC-T250H-MU
Optional
Plug and Play Kit
- 8 x Cat5e 20m Ready Made Cable
Main Camera Features:
- 5 MP resolution
- 2.8 mm fixed lens
- Infrared night vision up to 30m (black and white)
- Built-in microphone
- H.265+/H.265/H.264+/H.264, 120 dB WDR, 3D DNR
- Powered by PoE from the NVR
NVR Features
- 8-channel IP recorder with 8 built-in PoE ports
- Plug and play: cameras are found and added automatically
- Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p decoding; 80 Mbps incoming bandwidth
- H.265+/H.265/H.264+/H.264 compression
- HDMI/VGA output, 1 SATA interface
- Remote viewing with the free HiLookVision or Hik-Connect app
Who is this 5MP IP kit for?
A complete wired IP system: the HL-NVR-108MH-K/8P 8-channel PoE NVR with 8 x IPC-T250H-MU 5MP turret cameras. One Cat5e/Cat6 cable per camera carries both power and video, so there are no camera power supplies to fit. It suits houses, shops, offices and small commercial sites. Already have coax cabling? An HD-TVI kit can reuse it.
What you’ll need with it
- A surveillance-grade hard drive — choose one from the options and we fit and format it; 4TB suits a 8-camera 5MP system.
- Cat5e/Cat6 cable to each camera position (up to 100m per run) — the optional Plug and Play Cable covers 8 x 20m runs — and a network cable from the NVR to your router.
- An HDMI screen for setup; day to day most people use the app.
Frequently asked questions
Do the cameras need their own power?
No — the NVR’s PoE ports power them over the network cable.
Is the night vision in colour?
No — infrared, black and white after dark, up to 30m.
Does it record sound?
Yes — each camera has a built-in microphone.
Is a hard drive included?
Not by default — pick one from the Hard Drive option and we fit and format it.
Is there a monthly fee?
No — recording is local to the NVR and the app is free.
Technical Specification
| HL-NVR-108MH-K/8P Recorder | |
| IP Channels | 8 |
| PoE | 8 independent PoE ports |
| Incoming Bandwidth | 80 Mbps |
| Decoding | Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p |
| Compression | H.265+/H.265/H.264+/H.264 |
| HDD | 1 x SATA |
| IPC-T250H-MU Camera (x8) | |
| Resolution | 5 MP |
| Lens | 2.8 mm fixed |
| Night Vision | Infrared night vision up to 30m (black and white) |
| Audio | Built-in microphone |
| Features | 120 dB WDR, 3D DNR |
| Power | 12 VDC or PoE |
Further reading: Which HiLook NVR do I need? · Turret vs bullet vs dome · HiLook ColorVu 3.0 explained
| Product Code | HL-NVR-108MH-K/8P + 8 x IPC-T250H-MU |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Colour | White |
| Colour | White |
| Product Type | IP CCTV Kit |
| Max Resolution | 5MP |
| Number of Cameras | 8 Cameras |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 30 m |
| Audio I/O | Built-in mic |
| Power Features | PoE from the NVR (802.3af) |
