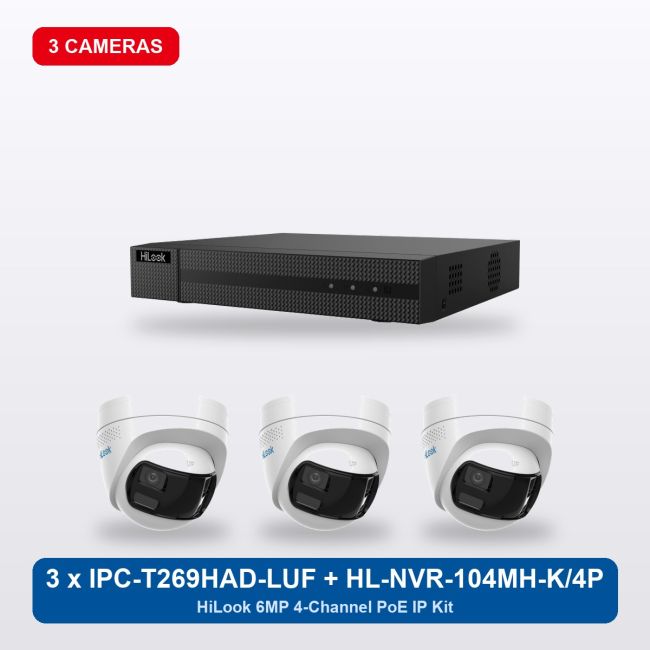

HiLook by Hikvision 6MP 4Ch IP Kit with 3 x IPC-T269HAD-LUF/SL 180° Dual-Lens ColorVu Turret Cameras
Product Features
What’s included
- 1 x HL-NVR-104MH-K/4P
- 3 x IPC-T269HAD-LUF/SL
Optional
Plug and Play Kit
- 3 x Cat5e 20m Ready Made Cable
Main Camera Features:
- 6 MP resolution
- 2 x 2.8 mm, stitched 180° view lens
- ColorVu: full-time colour imaging day and night with warm white light, up to 30m
- Built-in microphone and speaker; audio and strobe-light alarm
- H.265+/H.265/H.264+/H.264, WDR, microSD slot, strobe-light alarm
- Powered by PoE from the NVR
NVR Features
- 4-channel IP recorder with 4 built-in PoE ports
- Plug and play: cameras are found and added automatically
- Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p decoding; 40 Mbps incoming bandwidth
- H.265+/H.265/H.264+/H.264 compression
- HDMI/VGA output, 1 SATA interface
- Remote viewing with the free HiLookVision or Hik-Connect app
Who is this 6MP IP kit for?
A complete wired IP system: the HL-NVR-104MH-K/4P 4-channel PoE NVR with 3 x IPC-T269HAD-LUF/SL 6MP 180° dual-lens colorvu turret cameras. One Cat5e/Cat6 cable per camera carries both power and video, so there are no camera power supplies to fit. It suits houses, shops, offices and small commercial sites, and leaves 1 channel free to add cameras later. Already have coax cabling? An HD-TVI kit can reuse it.
What you’ll need with it
- A surveillance-grade hard drive — choose one from the options and we fit and format it; 2TB suits a 3-camera 6MP system.
- Cat5e/Cat6 cable to each camera position (up to 100m per run) — the optional Plug and Play Cable covers 3 x 20m runs — and a network cable from the NVR to your router.
- An HDMI screen for setup; day to day most people use the app.
Frequently asked questions
Do the cameras need their own power?
No — the NVR’s PoE ports power them over the network cable.
Is the night vision in colour?
Yes — ColorVu keeps the picture in colour after dark with warm white light, up to 30m.
Does it record sound?
Yes — each camera has a microphone and speaker for audio alarms and two-way talk.
Is a hard drive included?
Not by default — pick one from the Hard Drive option and we fit and format it.
Is there a monthly fee?
No — recording is local to the NVR and the app is free.
Technical Specification
| HL-NVR-104MH-K/4P Recorder | |
| IP Channels | 4 |
| PoE | 4 independent PoE ports |
| Incoming Bandwidth | 40 Mbps |
| Decoding | Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p |
| Compression | H.265+/H.265/H.264+/H.264 |
| HDD | 1 x SATA |
| IPC-T269HAD-LUF/SL Camera (x3) | |
| Resolution | 6 MP |
| Lens | 2 x 2.8 mm, stitched 180° view |
| Night Vision | ColorVu: full-time colour imaging day and night with warm white light, up to 30m |
| Audio | Built-in microphone and speaker; audio and strobe-light alarm |
| Features | WDR, microSD slot, strobe-light alarm |
| Power | 12 VDC or PoE |
Further reading: Which HiLook NVR do I need? · Turret vs bullet vs dome · HiLook ColorVu 3.0 explained
| Product Code | HL-NVR-104MH-K/4P + 3 x IPC-T269HAD-LUF/SL |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Colour | White |
| Colour | White |
| Product Type | IP CCTV Kit |
| Max Resolution | 6MP |
| Number of Cameras | 3 Cameras |
| Lens Type | Dual Lens |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 30 m |
| Audio I/O | Built-in mic & speaker, audio/strobe alarm |
| Power Features | PoE from the NVR (802.3af) |
