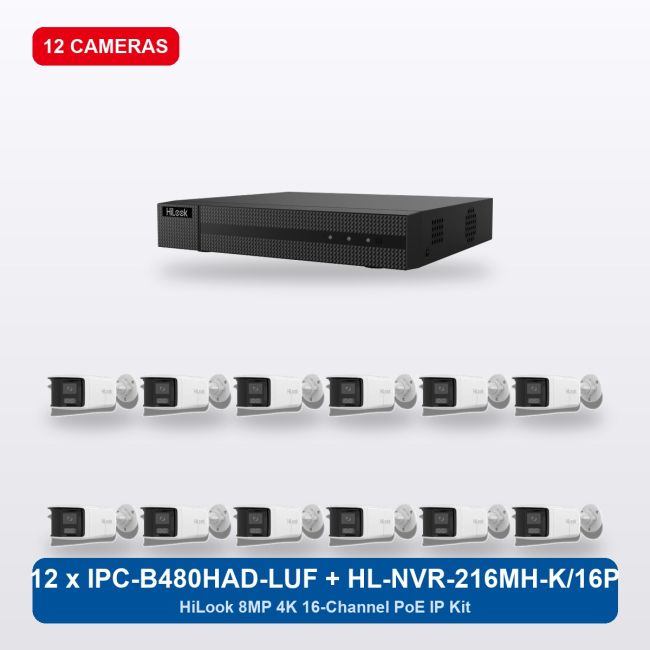

HiLook by Hikvision 8MP 4K 16Ch IP Kit with 12 x IPC-B480HAD-LUF/SL 180° Dual-Lens Bullet Cameras
Product Features
What’s included
- 1 x HL-NVR-216MH-K/16P
- 12 x IPC-B480HAD-LUF/SL
Optional
Plug and Play Kit
- 12 x Cat5e 20m Ready Made Cable
Main Camera Features:
- 8 MP resolution
- 2 x 2 mm, stitched 180° view lens
- Smart hybrid light: IR or white light up to 30m, with strobe light and audio alarm (active deterrence)
- Built-in microphone and speaker; audio and strobe-light alarm
- H.265+/H.265/H.264+/H.264, WDR, microSD slot
- Powered by PoE from the NVR
NVR Features
- 16-channel IP recorder with 16 built-in PoE ports
- Plug and play: cameras are found and added automatically
- Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p decoding; 160 Mbps incoming bandwidth
- H.265+/H.265/H.264+/H.264 compression
- HDMI/VGA output, 2 SATA interfaces
- Remote viewing with the free HiLookVision or Hik-Connect app
Who is this 8MP 4K IP kit for?
A complete wired IP system: the HL-NVR-216MH-K/16P 16-channel PoE NVR with 12 x IPC-B480HAD-LUF/SL 8MP 180° dual-lens bullet cameras. One Cat5e/Cat6 cable per camera carries both power and video, so there are no camera power supplies to fit. It suits houses, shops, offices and small commercial sites, and leaves 4 channels free to add cameras later. Already have coax cabling? An HD-TVI kit can reuse it.
What you’ll need with it
- A surveillance-grade hard drive — choose one from the options and we fit and format it; 8TB+ suits a 12-camera 8MP system.
- Cat5e/Cat6 cable to each camera position (up to 100m per run) — the optional Plug and Play Cable covers 12 x 20m runs — and a network cable from the NVR to your router.
- An HDMI screen for setup; day to day most people use the app.
Frequently asked questions
Do the cameras need their own power?
No — the NVR’s PoE ports power them over the network cable.
Is the night vision in colour?
Both — infrared by default, switching to white light for colour when an event is detected.
Does it record sound?
Yes — each camera has a microphone and speaker for audio alarms and two-way talk.
Is a hard drive included?
Not by default — pick one from the Hard Drive option and we fit and format it.
Is there a monthly fee?
No — recording is local to the NVR and the app is free.
Technical Specification
| HL-NVR-216MH-K/16P Recorder | |
| IP Channels | 16 |
| PoE | 16 independent PoE ports |
| Incoming Bandwidth | 160 Mbps |
| Decoding | Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p |
| Compression | H.265+/H.265/H.264+/H.264 |
| HDD | 2 x SATA |
| IPC-B480HAD-LUF/SL Camera (x12) | |
| Resolution | 8 MP |
| Lens | 2 x 2 mm, stitched 180° view |
| Night Vision | Smart hybrid light: IR or white light up to 30m, with strobe light and audio alarm (active deterrence) |
| Audio | Built-in microphone and speaker; audio and strobe-light alarm |
| Features | WDR, microSD slot |
| Power | 12 VDC or PoE |
Further reading: Which HiLook NVR do I need? · Turret vs bullet vs dome · HiLook ColorVu 3.0 explained
| Product Code | HL-NVR-216MH-K/16P + 12 x IPC-B480HAD-LUF/SL |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Colour | White |
| Colour | White |
| Product Type | IP CCTV Kit |
| Max Resolution | 8MP (4K) |
| Number of Cameras | 12 Cameras |
| Night Vision | Smart Hybrid (ColorVu + IR) |
| Max No. of Channels | 16 ch |
| Lens Type | Dual Lens |
| Lens Size | 2 mm |
| Max. IR Range | Up to 30 m |
| Audio I/O | Built-in mic & speaker, audio/strobe alarm |
| Power Features | PoE from the NVR (802.3af) |
