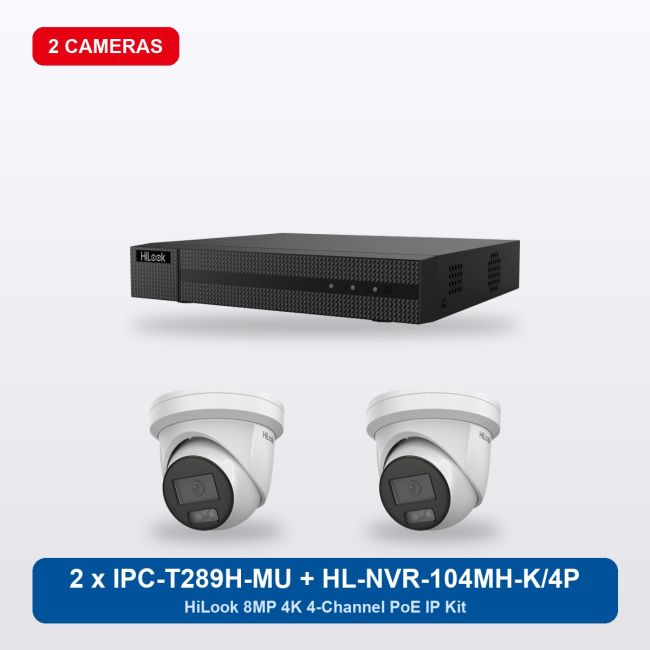

HiLook by Hikvision 8MP 4K 4Ch IP Kit with 2 x IPC-T289H-MU ColorVu Turret Cameras
Product Features
What’s included
- 1 x HL-NVR-104MH-K/4P
- 2 x IPC-T289H-MU
Optional
Plug and Play Kit
- 2 x Cat5e 20m Ready Made Cable
Main Camera Features:
- 8 MP resolution
- 2.8 mm fixed lens
- ColorVu: full-time colour imaging day and night with warm white light, up to 30m
- Built-in microphone
- H.265+/H.265/H.264+/H.264, 130 dB WDR, IP67
- Powered by PoE from the NVR
NVR Features
- 4-channel IP recorder with 4 built-in PoE ports
- Plug and play: cameras are found and added automatically
- Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p decoding; 40 Mbps incoming bandwidth
- H.265+/H.265/H.264+/H.264 compression
- HDMI/VGA output, 1 SATA interface
- Remote viewing with the free HiLookVision or Hik-Connect app
Who is this 8MP 4K IP kit for?
A complete wired IP system: the HL-NVR-104MH-K/4P 4-channel PoE NVR with 2 x IPC-T289H-MU 8MP colorvu turret cameras. One Cat5e/Cat6 cable per camera carries both power and video, so there are no camera power supplies to fit. It suits houses, shops, offices and small commercial sites, and leaves 2 channels free to add cameras later. Already have coax cabling? An HD-TVI kit can reuse it.
What you’ll need with it
- A surveillance-grade hard drive — choose one from the options and we fit and format it; 2TB suits a 2-camera 8MP system.
- Cat5e/Cat6 cable to each camera position (up to 100m per run) — the optional Plug and Play Cable covers 2 x 20m runs — and a network cable from the NVR to your router.
- An HDMI screen for setup; day to day most people use the app.
Frequently asked questions
Do the cameras need their own power?
No — the NVR’s PoE ports power them over the network cable.
Is the night vision in colour?
Yes — ColorVu keeps the picture in colour after dark with warm white light, up to 30m.
Does it record sound?
Yes — each camera has a built-in microphone.
Is a hard drive included?
Not by default — pick one from the Hard Drive option and we fit and format it.
Is there a monthly fee?
No — recording is local to the NVR and the app is free.
Technical Specification
| HL-NVR-104MH-K/4P Recorder | |
| IP Channels | 4 |
| PoE | 4 independent PoE ports |
| Incoming Bandwidth | 40 Mbps |
| Decoding | Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p |
| Compression | H.265+/H.265/H.264+/H.264 |
| HDD | 1 x SATA |
| IPC-T289H-MU Camera (x2) | |
| Resolution | 8 MP |
| Lens | 2.8 mm fixed |
| Night Vision | ColorVu: full-time colour imaging day and night with warm white light, up to 30m |
| Audio | Built-in microphone |
| Features | 130 dB WDR, IP67 |
| Power | 12 VDC or PoE |
Further reading: Which HiLook NVR do I need? · Turret vs bullet vs dome · HiLook ColorVu 3.0 explained
| Product Code | HL-NVR-104MH-K/4P + 2 x IPC-T289H-MU |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Colour | White |
| Colour | White |
| Product Type | IP CCTV Kit |
| Max Resolution | 8MP (4K) |
| Number of Cameras | 2 Cameras |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 30 m |
| Protection Level, Ingress Protection | IP67 |
| Audio I/O | Built-in mic |
| Power Features | PoE from the NVR (802.3af) |
