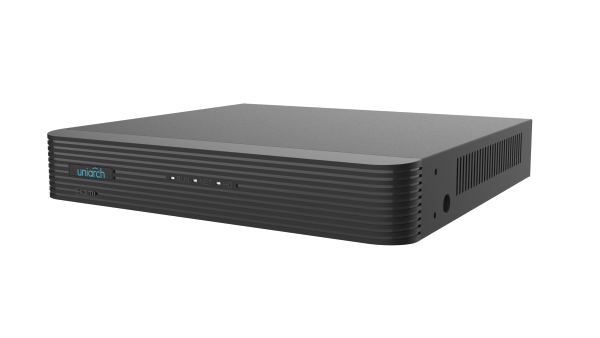

UNIARCH - NVR-104E2-P4 - 4-Channel 8MP PoE NVR with 1 SATA Bay
Product Features
The Uniarch NVR-104E2-P4 is a 4-channel PoE NVR with 4 built-in PoE ports, 8MP recording, 4K HDMI output and 1 SATA bay for a drive of up to 8 TB.
NVR-104E2-P4 — 4-Channel 8MP PoE NVR with 1 SATA Bay
The Uniarch (by Uniview) NVR-104E2-P4 is a 4-channel network video recorder with 4 built-in PoE ports, recording up to 8MP and taking one SATA hard drive of up to 8 TB.
What the NVR-104E2-P4 is for
The NVR-104E2-P4 suits an IP camera system of up to four cameras that plug straight into the recorder's own PoE ports, with no separate PoE switch. The PoE ports support IEEE 802.3af and 802.3at, with up to 30 W per port and 54 W in total.
It decodes Ultra 265, H.265 and H.264, has HDMI output up to 4K and a VGA output, and handles alarm events from cameras with SIP (intrusion, cross line, enter and leave area) and Ultra Motion Detection.
Key features
- 4-channel IP input with 4 built-in PoE ports (802.3af/at, 54 W total)
- Records up to 8MP; Ultra 265, H.265 and H.264
- 1 SATA bay, up to 8 TB
- HDMI output up to 4K, plus VGA
- 40 Mbps incoming bandwidth, 128 remote users
- Powered by DC 48 V; ≤ 9 W without HDD
Full specification
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 1 × 4K@30, 2 × 6MP@30, 4 × 5MP@25, 4 × 4MP@25, 4 × 3MP@25, 4 × 1080P@30 |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 40 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 |
| Browser | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz down to 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz down to 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Live View Display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Recording | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback | 4-ch |
| Smart Function | |
| VCA Detection by IPC | SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) |
| VCA Search | Behaviour search |
| Smart by IPC | Total 4-ch (SIP on channels 1–4, alarm only, no image) |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB per HDD (maximum varies with ambient temperature) |
| External Interface | |
| Network Interface | 1 × RJ45 10/100 Mbps |
| USB | Rear panel: 2 × USB 2.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE | |
| PoE Interface | 4 × RJ45 10/100 Mbps |
| Max Power | 30 W per port, 54 W total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Working Environment | |
| Working Temperature | -10°C to 55°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 9 W |
| Dimensions | |
| Weight (without HDD) | ≤ 1.2 kg |
| Dimensions | 260 mm × 243 mm × 46 mm |
| Certification | |
| Certification | CE, FCC, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part 15 Subpart B |
What you will need
Up to four IP cameras connect to the PoE ports with network cable; for more cameras or longer runs see our PoE switches. Add a surveillance hard drive of up to 8 TB, since no drive is listed as included. Compare other network video recorders.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NVR-104E2-P4 with you before you buy — camera count and type, PoE power for your cameras and hard drive size for your recording days — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
Does the NVR-104E2-P4 include a hard drive?
Assume not. It has 1 SATA bay taking a drive of up to 8 TB, so add a surveillance hard drive.
Can I connect PoE cameras straight to the NVR-104E2-P4?
Yes. It has 4 PoE ports supporting IEEE 802.3af and 802.3at, with up to 30 W per port and 54 W in total.
What resolution can the NVR-104E2-P4 record?
It records up to 8MP and can decode one 4K stream at 30 fps or four 5MP streams at 25 fps.
What monitor outputs does the NVR-104E2-P4 have?
It has an HDMI output up to 4K (3840 × 2160) at 30 Hz and a VGA output up to 1920 × 1080 at 60 Hz.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniarch range.
| Product Code | NVR-104E2-P4 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
