UNIVIEW - IPC2324SE-ADZK-WL-I0 - 4MP HD Intelligent Dual Illuminators ColorHunter Varifocal Bullet Network Camera

IPC2324SE-ADZK-WL-I0 — 4MP HD Intelligent Dual Illuminators ColorHunter Varifocal Bullet Network Camera

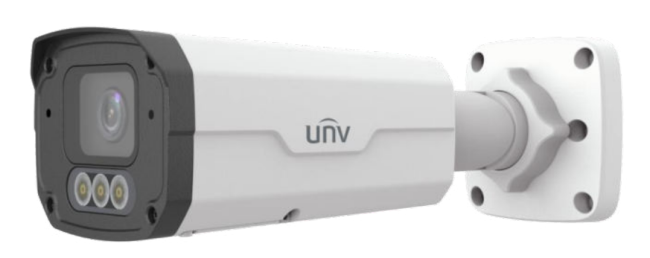

The Uniview IPC2324SE-ADZK-WL-I0 is a 4MP ColorHunter bullet network camera with a 1/1.8" CMOS sensor and a motorised 2.8 to 12 mm lens with autofocus. It is rated IP67 and IK10 for outdoor use.

What the IPC2324SE-ADZK-WL-I0 is for

The motorised lens lets the view be set after mounting, from a 102.4° horizontal field of view at 2.8 mm to 49.2° at 12 mm. Uniview's DORI distances run from 43.4 m to 186.2 m to detect and from 4.3 m to 18.6 m to identify, wide to tele.

ColorHunter is aimed at full-colour images around the clock. Minimum illumination is 0.0005 lux in colour (F1.2, AGC on), with illuminators reaching up to 30 m and 120 dB WDR for scenes with bright backlight. Smart intrusion prevention covers cross line, intrusion, enter area and leave area detection with false alarm filtering, and the camera also lists people flow counting and crowd density monitoring.

Key features

• 4MP (2688 × 1520) at up to 30 fps, 1/1.8" CMOS sensor
• Motorised 2.8 to 12 mm autofocus lens, 102.4° to 49.2° horizontal view
• Illuminator distance up to 30 m, 0.0005 lux colour minimum illumination
• 120 dB WDR, triple streams, Ultra 265, H.265, H.264 and MJPEG
• Built-in two mics, audio 1 in/1 out, alarm 1 in/1 out
• IP67, IK10, PoE (802.3af) or 12 V DC, microSD up to 256 GB

Full specification

What you will need

Power it from a PoE switch or an NVR's PoE port (IEEE 802.3af, max. 11.5 W), or from 12 V DC through the Ø5.5 mm plug. Run network cable to the camera and add an NVR with surveillance hard drives for continuous recording. A microSD card is optional and not included.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC2324SE-ADZK-WL-I0 with you before you buy — the motorised 2.8 to 12 mm lens, coverage distances, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What lens does the IPC2324SE-ADZK-WL-I0 have?

A motorised 2.8 to 12 mm autofocus lens, giving a horizontal field of view of 102.4° to 49.2°.

How far does the IPC2324SE-ADZK-WL-I0 illuminate at night?

Uniview lists an illuminator distance of up to 30 m, with auto or manual control.

Is the IPC2324SE-ADZK-WL-I0 PoE?

Yes. It takes PoE (IEEE 802.3af) or DC 12 V ±25%, with a maximum consumption of 11.5 W.

Does the IPC2324SE-ADZK-WL-I0 have audio?

Yes. It has two built-in mics, an audio input and output, and supports two-way audio.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
