UNIVIEW - IPC2A12LP-ADF40KC-4G-E - 2MP HD 4G Dual-light Fixed Bullet Network Camera, 4.0mm

IPC2A12LP-ADF40KC-4G-E — 2MP HD 4G Dual-light Fixed Bullet Network Camera, 4.0mm

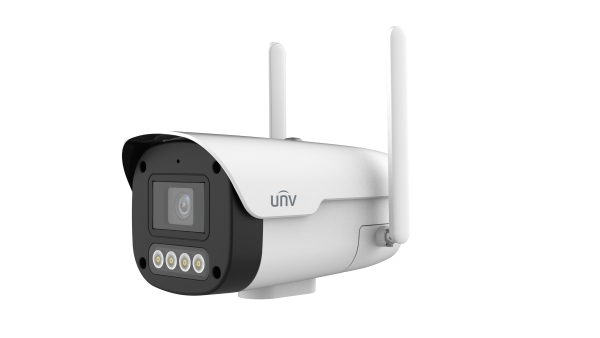

The Uniview IPC2A12LP-ADF40KC-4G-E is a 2MP 4G bullet network camera with a fixed 4.0 mm lens.

What the IPC2A12LP-ADF40KC-4G-E is for

The lens gives a horizontal field of view of 87.5°. Uniview's DORI figures are 62.1 m to detect and 6.2 m to identify. For low light it has dual light, infrared to 50 m and warm light to 30 m. It is rated IP67 for outdoor use (working range -30 °C to 60 °C).

The datasheet lists smart intrusion prevention: cross line detection, intrusion detection, enter area detection, leave area detection, with false alarm filtering.

As a 4G model it is intended for sites without a wired network connection; it takes a Nano-SIM and is powered from 12 V DC.

Key features

• 2MP maximum resolution, 1/2.8" CMOS sensor, 120 dB WDR
• Fixed lens, 4.0 mm, F1.6 iris
• Horizontal field of view 87.5°
• Dual light, infrared to 50 m and warm light to 30 m
• 4G LTE with Nano-SIM slot
• Built-in microphone and built-in speaker
• IP67, 12 V DC, microSD, up to 512 GB

Full specification

What you will need

Power it from a 12 V DC supply (not supplied); maximum draw is 6.5 W. A Nano-SIM with a data plan is needed for the 4G connection; the RJ45 port can also be used with a network cable. For recording, add a compatible NVR with hard drives, or a microSD card (up to 512 GB). Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC2A12LP-ADF40KC-4G-E with you before you buy — the 4.0 mm lens, coverage, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What lens does the IPC2A12LP-ADF40KC-4G-E have?

A fixed 4.0 mm lens, with a horizontal field of view of 87.5°.

How far can the IPC2A12LP-ADF40KC-4G-E see?

Uniview's DORI figures are 62.1 m to detect and 6.2 m to identify.

Is the IPC2A12LP-ADF40KC-4G-E PoE?

No. It is powered from DC 12 V ±25% and connects over 4G (Nano-SIM) or its RJ45 port; maximum consumption is 6.5 W.

Does the IPC2A12LP-ADF40KC-4G-E have night lighting?

Yes: dual light, infrared to 50 m and warm light to 30 m.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
