UNIVIEW - IPC3618LE-ADF28KC-DL-BLACK - 8MP HD ColorHunter IR Fixed Eyeball Network Camera, 2.8mm, Black

IPC3618LE-ADF28KC-DL-BLACK — 8MP HD ColorHunter IR Fixed Eyeball Network Camera, 2.8mm, Black

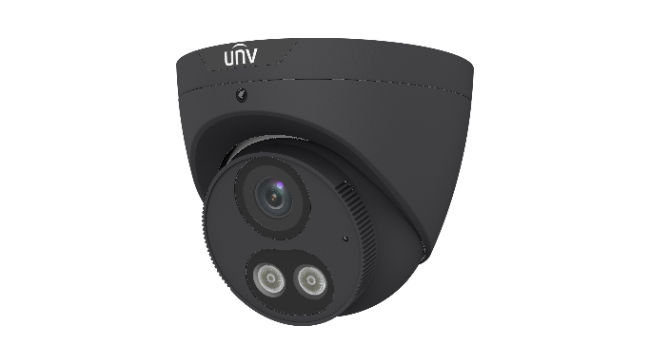

The Uniview IPC3618LE-ADF28KC-DL-BLACK is an 8MP eyeball camera in a black housing with a 2.8 mm lens.

What the IPC3618LE-ADF28KC-DL-BLACK is for

The lens gives a horizontal field of view of 98.7°. Uniview's DORI figures are 87.0 m to detect and 8.7 m to identify. Supplementary lighting: infrared to 30 m and warm light to 30 m. Minimum illumination is Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light.

It is rated IP67 (IEC 60529) with a working range of -30 °C to 60 °C. Basic detection includes cross line and intrusion based on human body detection, plus motion, tampering and audio detection.

Key features

• 8MP maximum resolution, 1/2.8" CMOS sensor, 120 dB WDR
• Fixed lens, 2.8 mm
• Horizontal field of view 98.7°
• Illumination: infrared to 30 m, warm light to 30 m
• Power: DC 12 V±25%, PoE (IEEE 802.3af); Max. 5.0 W
• Edge storage: MicroSD, up to 512 GB
• Protection: IP67 (IEC 60529)
• Black housing

Full specification

What you will need

Power the camera from a PoE switch or NVR PoE port (IEEE 802.3af) (the camera accepts DC 12 V±25%, PoE (IEEE 802.3af)); maximum consumption is 5.0 W. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (MicroSD, up to 512 GB). None of these are supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC3618LE-ADF28KC-DL-BLACK with you before you buy — the lens and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the IPC3618LE-ADF28KC-DL-BLACK the same camera as the white version?

Yes, apart from the black housing; specification is as published for the IPC3618LE-ADF28KC-DL.

What lens does the IPC3618LE-ADF28KC-DL-BLACK have?

A 2.8 mm fixed lens, with a horizontal field of view of 98.7°.

How is the IPC3618LE-ADF28KC-DL-BLACK powered?

Uniview lists DC 12 V±25%, PoE (IEEE 802.3af), with max. 5.0 W consumption.

Does the IPC3618LE-ADF28KC-DL-BLACK work at night?

Yes. It has infrared to 30 m and warm light to 30 m.

Is the IPC3618LE-ADF28KC-DL-BLACK suitable for outdoor use?

It is rated IP67 (IEC 60529) and works from -30 °C to 60 °C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
