UNIVIEW - IPC6322LFW-AX5C-VG - 2MP 5X Dual-light Network PTZ Camera

IPC6322LFW-AX5C-VG — 2MP 5X Dual-light Network PTZ Camera

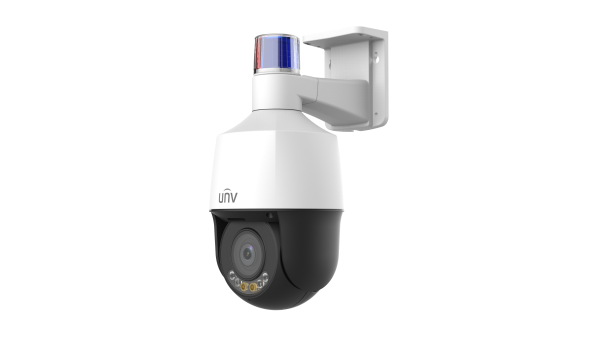

The Uniview IPC6322LFW-AX5C-VG is a 2MP PTZ camera with a 5X optical zoom (2.7 to 13.5 mm), pan of 0° to 345° and tilt of -10° to 100°.

What the IPC6322LFW-AX5C-VG is for

The lens gives a horizontal field of view of 105.2° to 29.32°. Uniview's DORI figures are 48.9 m to 170.7 m to detect and 4.9 m to 17.1 m to identify. Supplementary lighting: infrared to 50 m and warm light to 15 m. Minimum illumination is Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR on.

It is rated IP66 with a working range of -30 °C to 60 °C. Auto tracking is supported (human targets), and smart intrusion prevention covers cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle).

Key features

• 2MP maximum resolution, 1/2.8" CMOS sensor, 120 dB WDR
• 5X optical zoom, 2.7 to 13.5 mm
• Pan 0° to 345°, tilt -10° to 100°, 1024 presets
• Illumination: infrared to 50 m, warm light to 15 m
• Auto tracking (human), built-in mic and speaker
• Power: DC 12 V (±25%), PoE (IEEE 802.3at); 18 W
• Edge storage: MicroSD, up to 512 GB; IP66

Full specification

What you will need

Power the camera from a PoE switch or NVR PoE port that supplies IEEE 802.3at (PoE+), or from a 12 V DC supply; consumption is 18 W, so a standard 802.3af port is not enough. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (up to 512 GB). None of these are supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6322LFW-AX5C-VG with you before you buy — the lens and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What zoom does the IPC6322LFW-AX5C-VG have?

A 5X optical zoom lens, 2.7 to 13.5 mm, with a horizontal field of view of 105.2° to 29.32°.

How is the IPC6322LFW-AX5C-VG powered?

Uniview lists DC 12 V (±25%) or PoE (IEEE 802.3at), with 18 W consumption.

Does the IPC6322LFW-AX5C-VG work at night?

Yes. It has infrared to 50 m and warm light to 15 m.

Can the IPC6322LFW-AX5C-VG follow people automatically?

Yes. Uniview lists auto tracking with target filtering for humans only.

Is the IPC6322LFW-AX5C-VG suitable for outdoor use?

It is rated IP66, has a heater and works from -30 °C to 60 °C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
