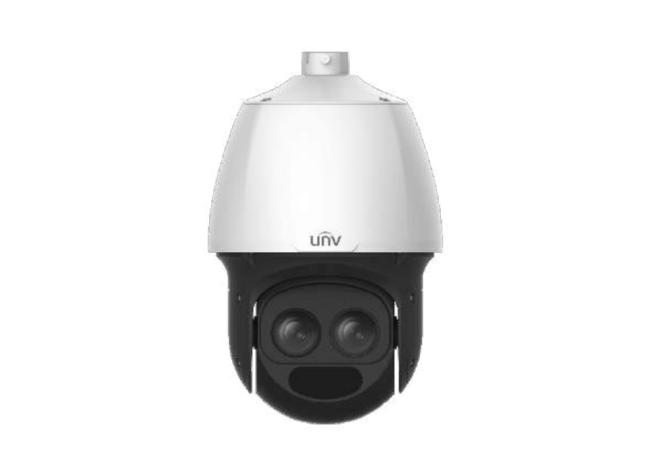

UNIVIEW - IPC6652EL-X33-VF - 2MP 33x LightHunter Laser IR Network PTZ Camera

IPC6652EL-X33-VF — 2MP 33x LightHunter Laser IR Network PTZ Camera

The Uniview IPC6652EL-X33-VF is a 2MP network PTZ camera with a 1/2.8" CMOS sensor, 33x optical zoom and a vari-focal laser illuminator rated up to 500 m. It is built for long-range outdoor monitoring and rated IP66.

What the IPC6652EL-X33-VF is for

The 4.5 to 148.5 mm lens takes the horizontal view from 56.2° down to 2.6°. Uniview's DORI figures run from 72.9 m to 2187.9 m to detect and from 7.3 m to 218.8 m to identify, wide to tele, so it suits perimeters, car parks, yards and open sites.

LightHunter is aimed at low-light performance, with a colour minimum illumination of 0.001 lux (F1.5, AGC on), and the 850 nm laser scales with the zoom. Pan is 360° endless at up to 200°/s manual and 300°/s preset, with 1024 presets, patrols and auto tracking. Smart intrusion prevention and people counting are also listed.

Key features

• 2MP (1920 × 1080) at up to 60 fps, 1/2.8" CMOS sensor
• 33x optical zoom (4.5 to 148.5 mm), 16x digital zoom
• Vari-focal 850 nm laser illumination up to 500 m
• Auto tracking, 1024 presets, 360° endless pan
• Alarm 2 in/1 out, audio 1 in/1 out, RS485, BNC video output
• IP66, 6 kV surge protection, 24 V AC/DC or PoE (PSE required)

Full specification

What you will need

Power it from a 24 V AC or DC supply, or from PoE equipment (Uniview states a PSE is required; maximum draw is 53 W, so check your PoE source can deliver it). Run network cable to the camera and add an NVR with surveillance hard drives for recording. A wall, pole or corner mount is needed and is sold separately.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6652EL-X33-VF with you before you buy — zoom range, laser distance, mounting and how to power it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How much zoom does the IPC6652EL-X33-VF have?

33x optical zoom (4.5 to 148.5 mm) plus 16x digital zoom.

How far can the IPC6652EL-X33-VF see at night?

The vari-focal laser is rated up to 500 m and its distance follows the optical zoom.

How is the IPC6652EL-X33-VF powered?

By AC 24 V ±25%, DC 24 V ±25%, or PoE with a PSE. Maximum consumption is 53 W.

Does the IPC6652EL-X33-VF support auto tracking?

Yes. Auto tracking is listed under events, along with 1024 presets and patrol functions.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
