UNIVIEW - MW3232-V-K2 - 32 Inch Plastic Case LCD Monitor
Product Features
32-inch Full HD (1920 × 1080) LCD monitor in a plastic case, rated for 24/7 operation, with HDMI and VGA inputs, 2 × 2 W speakers and 100 × 100 mm VESA mounting. Base, HDMI cable and adapter included.
MW3232-V-K2 — 32 Inch Plastic Case LCD Monitor

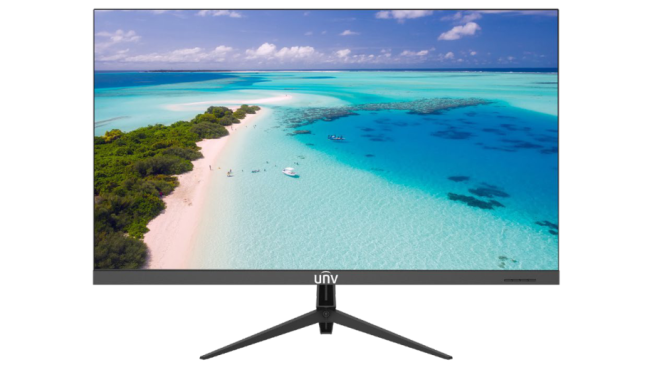

The Uniview MW3232-V-K2 is a 32-inch Full HD LCD monitor in a lightweight plastic case, intended for CCTV viewing and rated for 24/7 operation.
What the MW3232-V-K2 is for
It is a viewing screen for an NVR or other video source at a reception desk, office or control point. It takes HDMI or VGA, has 178° horizontal and vertical viewing angles and automatically detects a connected signal cable.
It can stand on the supplied base or be wall mounted using its 100 × 100 mm VESA pattern. Power comes from the included 12 V adapter.
Key features
- 32-inch panel, 1920 × 1080, 75 Hz, 8 ms response
- 300 cd/m² brightness, 4000:1 contrast, 16.7 M colours
- 178°/178° viewing angles
- 1 × HDMI, 1 × VGA, 1 × audio input, 2 × 2 W speakers
- 24/7 operation rated
- VESA 100 × 100 mm, base included
Full specification
| Panel | |
| Panel Size | 32" |
| Resolution | 1920 × 1080 |
| Pixel Pitch (H × V) | 0.36 × 0.36 mm |
| Colour Support | 16.7 M |
| Brightness | 300 cd/m² |
| Contrast Ratio | 4000:1 |
| Refresh Rate | 75 Hz |
| Response Time | 8 ms |
| Viewing Angle (H/V) | 178° / 178° |
| Display Size | 698.40 × 392.85 mm |
| Operation Hours | 24/7 |
| Interface | |
| Video Input | 1 × VGA, 1 × HDMI |
| Audio Input | 1 × audio |
| Speaker | 2 × 2 W |
| Mounting | |
| VESA | 100 × 100 mm |
| Wall-mount Thread | 4 × M4 screw holes, 8 mm deep |
| General | |
| Input Voltage | DC 12 V, 3 A |
| Typical Power Consumption | < 36 W |
| Standby Power | < 0.5 W |
| Dimensions (W × H × D) | 712.54 × 422.96 × 61.60 mm without base; 712.54 × 517.14 × 199.64 mm with base |
| Package Dimensions | 784 × 512 × 144 mm |
| Weight | Net 4.1 kg, gross 6 kg |
| Operating Environment | 0°C to 50°C, humidity 10% to 90% (non-condensing) |
| Storage Environment | -20°C to 60°C, humidity 5% to 90% (non-condensing) |
| OSD Languages | English, French, German, Spanish, Italian, Portuguese, Dutch, Polish, Russian, Turkish, Korean, Simplified Chinese |
| In the Box | 1 × HDMI cable, 1 × base, 1 × adapter, 1 × quick guide |
| Optional Accessory | HB-4022-E |
What you will need
Connect it to an NVR or other source using the supplied HDMI cable, or a VGA cable. The 12 V adapter is included. For wall mounting, use a 100 × 100 mm VESA bracket.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the MW3232-V-K2 with you before you buy — screen size, inputs and mounting — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
What inputs does the MW3232-V-K2 have?
One HDMI, one VGA and one audio input.
Can the MW3232-V-K2 run all the time?
Yes. Uniview rates it for 24/7 operation.
Can it be wall mounted?
Yes. It has a 100 × 100 mm VESA pattern with four M4 screw holes, 8 mm deep.
Does it have speakers?
Yes, two 2 W speakers.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | MW3232-V-K2 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
