UNIVIEW - NI-VX1648-C-V3 - 48-Bay IP SAN Video Storage, Single Controller
Product Features
48-bay IP SAN video storage with a single controller, SATA drives of 4 to 24 TB, RAID 0, 1, 5 and 6 and iSCSI. Drives are not included.
NI-VX1648-C-V3 — 48-Bay IP SAN Video Storage, Single Controller

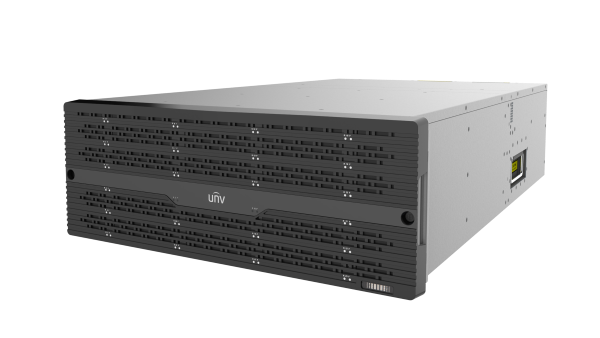

The Uniview NI-VX1648-C-V3 is a 48-bay IP SAN for video storage, with one controller, an Intel 64-bit multi-core processor and 4 GB memory.
What the NI-VX1648-C-V3 is for
It is central storage for larger CCTV systems, where cameras and recorders write to a shared iSCSI pool rather than to drives in each recorder. Uniview rates it for 320-channel (640 Mbps) recording, 160-channel forwarding and 32-channel playback, with up to 1024 host connections.
It takes 48 SATA drives of 4 to 24 TB each, with JBOD and RAID 0, 1, 5 and 6 and dedicated or global hot-spare disks. It has three gigabit Ethernet ports, with optional 2.5GE and 10GE SFP+ modules, and 2 PCIe slots. It runs on 100 to 240 V AC and draws under 700 W fully configured.
Key features
- 48 SATA drive bays, 4 to 24 TB per drive
- JBOD, RAID 0, 1, 5, 6, hot-spare disks
- iSCSI, up to 1024 host connections
- 320-channel (640 Mbps) recording, 32-channel playback
- 3 × gigabit Ethernet, 2 PCIe slots, optional 10GE SFP+
- 100 to 240 V AC, under 700 W fully configured; NDAA compliant
Full specification
| Module | |
| Controller number | 1 |
| CPU | Intel 64-bit multi-core processor |
| Memory | 4GB |
| Power module | default 1, optional 1 |
| Battery module | default 1, optional 1 |
| Power Supply | 100 V – 127 V/ 200 V – 240 V AC, 60 Hz/50 Hz |
| Power Consumption | <700W (fully configured) |
| Weight | Fully configured: <67kg |
| Dimension | 178 mm × 482 mm × 801 mm (H × W × D) |
| Operating temperature | 5 °C to 40 °C (10 °C to 35 °C recommended) |
| Disk Capacity | 4 ~ 24TB |
| Disk Interface Type | SATA |
| Interface | |
| Front-end Service Interface | 3 10/100/1000 Mbps Ethernet interface; 4 port 2.5GE interface module (optional); 2-port 10 GE SFP+ interface module (optional); 4-port 10 GE SFP+ interface module (optional) |
| PCIe slot | 2 |
| VGA | 1 |
| USB | 2 |
| Serial port | 1*RS232 RJ45 |
| HDD slot | 48 |
| Function | |
| RAID | JBOD and RAID 0,1, 5, 6 Dedicated hot-spare disk and global hot-spare disk |
| Protocol | ISCSI |
| Host Connection | Up to 1024 |
| Maximum Number of Logic Resources | 1024 |
| Alarm | Indicator alarm, mail alarm, SNMP Trap alarm, and short message alarm |
| Performance | |
| Video Mode | 320-channel (640Mbps) recording, 160-channel (320Mbps) forwarding, 32-channel (64Mbps) playback |
| Compliance | |
| NDAA Compliant | Support |
What you will need
Add 48 SATA surveillance hard drives of 4 to 24 TB each; none are supplied. It needs rack space, mains power and gigabit or faster switching between it and the recorders or VMS, plus a network cable for each link. A compatible NVR or VMS that can use iSCSI storage is needed to record to it.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NI-VX1648-C-V3 with you before you buy — drive count and RAID level, usable capacity, and how your recorders or VMS connect over iSCSI — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many drives does the NI-VX1648-C-V3 hold?
48 SATA drives, each 4 to 24 TB.
Are drives included with the NI-VX1648-C-V3?
No. Drives are ordered separately.
What RAID levels does the NI-VX1648-C-V3 support?
JBOD and RAID 0, 1, 5 and 6, with dedicated and global hot-spare disks.
How many cameras can the NI-VX1648-C-V3 record?
Uniview lists 320-channel (640 Mbps) recording, 160-channel forwarding and 32-channel playback.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NI-VX1648-C-V3 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| Operating Temperature | 5°C to 40°C |
