UNIVIEW - NSW3000-8T2GT-POE-IN - Cloud Managed Ethernet PoE Switch, 8 PoE Ports
Product Features
Cloud managed PoE switch with 8 x 10/100Mbps PoE ports and 2 gigabit RJ45 ports, sharing a 120W PoE budget (30W max per port). Fanless, mains powered.
NSW3000-8T2GT-POE-IN — Cloud Managed Ethernet PoE Switch, 8 PoE Ports

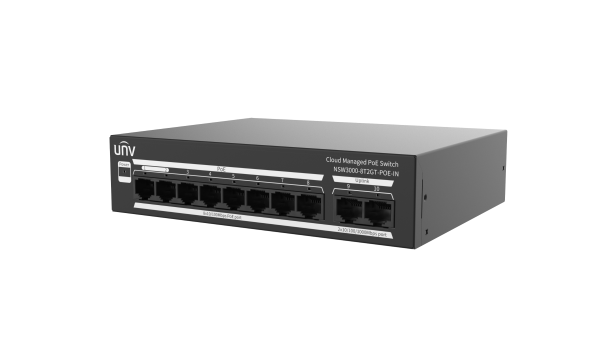

The Uniview NSW3000-8T2GT-POE-IN is a cloud managed Ethernet PoE switch with 8 x 10/100Mbps PoE ports (RJ45) and 2 x gigabit RJ45 ports. It supplies up to 120W of PoE in total.
What the NSW3000-8T2GT-POE-IN is for
It suits a CCTV or small business network of up to 8 PoE devices where some management is wanted: Uniview lists VLANs (up to 32), port isolation for downlink ports, loop detection, port rate limiting, broadcast storm control and N:1 port mirroring.
Each PoE port supplies up to 30W. Plan around the 120W total rather than the per-port maximum. Uniview lists IEEE 802.3af and 802.3at in PoE mode A (1236) and mode B (4578), and PoE status and power can be viewed and switched per port.
Key features
- 8 x 10/100Mbps PoE ports (RJ45) and 2 x gigabit RJ45 ports
- PoE budget of 120W in total; up to 30W on a single port
- IEEE 802.3af and 802.3at, PoE mode A and mode B
- Switching capacity 5.6 Gbps, forwarding performance 4.17Mpps
- Fanless, 169 x 132 x 40mm, 0.67KG
- Uniview lists NDAA compliance for this model
Full specification
| Hardware Specification | |
| Ports Type | 8 x 10/100Mbps POE port (RJ45) , 2 x Gigabit port (RJ45) |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching capacity | 5.6 Gbps |
| Forwarding performance | 4.17Mpps |
| Packet Buffer | 2 M bit |
| MAC | 4K |
| Weight | 0.67KG |
| Dimensions (W×D×H) | 169mm*132mm*40mm |
| PoE Standard | IEEE 802.3af, IEEE 802.3 at |
| Max.PoE Power | Maximum total power: 120W Maximum PoE power for single port: 30W |
| PoE Mode | ModeA (1236), ModeB (4578) |
| Power Supply | AC: 100 to 240V, 50/60Hz |
| Max.Power | 130W |
| Prior Ports | 1 to 2 |
| Cooling Fans | 0 |
| Operating Humidity | 5% to 90% RH, noncondensing |
| Operating Temperature | 0°C to 45°C |
| Software Specification | |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics Supports a link aggregation group (consist of two uplink ports) |
| VLAN | Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094 |
| MAC | Support (up to 4K). Supports clearing the dynamic MAC address |
| POE | Allows to view PoE status and power. Allows to enable/disable PoE power supply. |
| Loop Detection | Loop Detection |
| QoS | Supports port rate limitation. Supports broadcast storm control. |
| Security | Supports port isolation (only for the downlink ports). Supports locking login IP address, up to 64 addresses can be locked |
| Maintenance | Supports N:1 port mirroring. Supports unified software configuration, management, and search. Supports discovering the connected video devices and generating a network topology on the software. Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software. |
| System | Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. Allows to edit and manage the IP address and device name. Supports single-user management, user authentication, and password modification. Allows to view other switches information on the same network, up to 32 switches. Allows to view the connected video devices information, up to 64 devices . |
| Compliance | |
| NDAA Compliant | Support |
What you will need
You need a mains supply (AC 100 to 240V, 50/60Hz), network cable to each device and PoE devices whose combined draw stays within 120W. Use one of the gigabit ports to link to your recorder or network. See our PoE switches and NVRs.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NSW3000-8T2GT-POE-IN with you before you buy — how many PoE devices fit the 120W budget and which management features you need — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How much PoE does the NSW3000-8T2GT-POE-IN supply?
120W in total, up to 30W on a single port.
Which ports are gigabit?
The two RJ45 gigabit ports. The eight PoE ports are 10/100Mbps.
Does the NSW3000-8T2GT-POE-IN have a fan?
No, Uniview lists 0 cooling fans.
What management does it offer?
Uniview lists VLANs (up to 32), port isolation, loop detection, rate limiting, storm control, port mirroring and per-port PoE control.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NSW3000-8T2GT-POE-IN |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
