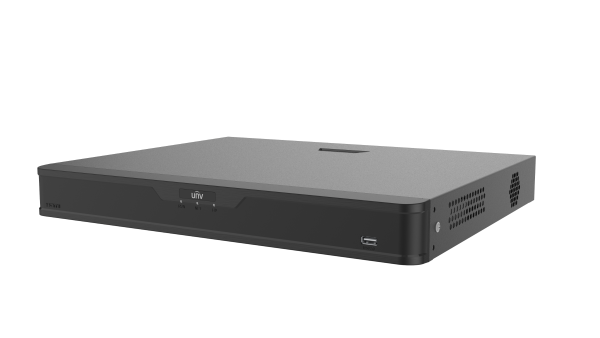

UNIVIEW - NVR302-09B-IQ - 9-Channel Network Video Recorder with 2 SATA Bays
Product Features
9-channel Easy Series NVR with two SATA bays (up to 24 TB each), 160 Mbps incoming bandwidth, dual gigabit ports and 4K HDMI. No PoE. Hard drives not included.
NVR302-09B-IQ — 9-Channel Network Video Recorder with 2 SATA Bays
The Uniview NVR302-09B-IQ is a 9-channel Easy Series NVR with two SATA bays, each taking a drive of up to 24 TB, and two gigabit network ports.
What the NVR302-09B-IQ is for
It suits sites with up to nine IP cameras, with 160 Mbps incoming and 128 Mbps outgoing bandwidth. Decoding is listed as 2 x 12MP, 2 x 4K, 4 x 4MP or 9 x 1080P at 30 fps with smart functions off.
It has no built-in PoE, so cameras are powered from a PoE switch. Uniview lists Smart by NVR functions (face detection, SIP and UMD, one analyser mode at a time) and AcuSearch / AcuTrack with Uniview SIP/UMD cameras. Face detection by NVR runs on up to 8 channels with Uniview face detection cameras.
Key features
- 9 IP video channels, recording up to 12 MP
- 160 Mbps incoming / 128 Mbps outgoing bandwidth
- 2 SATA bays, up to 24 TB each, disk groups
- 2 x RJ45 10/100/1000 Mbps network ports
- HDMI up to 4K at 30 Hz plus VGA
- Smart by NVR face detection, SIP and UMD
Full specification
| Decoding | |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 9 x 1080P@30 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 9 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Max Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP |
| Video/Audio Input | |
| IP Video Input | 9-ch |
| RCA Audio Input | 1-ch |
| Peripheral Input | |
| Ip Speaker | 32-ch |
| POS | All channels |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4/5/7/9 |
| Two-way Audio | |
| Two-way Audio | 1-ch,RCA(Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 9-ch |
| Smart Function | |
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring |
| Smart by NVR | Face Detection, Face detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by NVR Analyzer Mode | Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. |
| VCA Search | AcuSearch, AcuTrack, , Face detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| AcuSearch | |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| AcuTrack | |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| face detection | |
| face detection by NVR | Up to 8-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP) |
| Plate Comparison | |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP | |
| SIP by NVR with normal cameras | Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) |
| UMD | |
| UMD by NVR with normal cameras | Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Hard Disk | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C) |
| Disk Group | Support |
| External Interface | |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 |
| Power Supply | DC 12 V/3 A |
| Working Environment | |
| Working Temperature | -10°C to 55°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | |
| Weight (without HDD) | ≤ 2Kg |
| Dimensions | 380mm × 315mm × 53mm |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
What you will need
Power the cameras from a PoE switch and connect them with network cable. No hard drives are supplied; add up to two surveillance hard drives of up to 24 TB each. It runs from DC 12 V/3 A and a monitor connects by HDMI or VGA.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NVR302-09B-IQ with you before you buy — camera count, bandwidth and how much storage to fit across the two bays — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras can the NVR302-09B-IQ record?
9 IP channels, with 160 Mbps incoming bandwidth.
How many hard drives does the NVR302-09B-IQ take?
Two SATA drives of up to 24 TB each. None is supplied, so add a surveillance hard drive.
Does the NVR302-09B-IQ have PoE?
No. Use a PoE switch or local supplies for the cameras.
Does it have two network ports?
Yes, 2 RJ45 10/100/1000 Mbps self-adaptive Ethernet interfaces.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NVR302-09B-IQ |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| In/Out Bandwidth | In: 160 Mbps / Out: 128 Mbps |
| Storage Capacity | Up to 24 TB for each HDD |
| Power Consumption (without HDD) | ≤ 12W |
