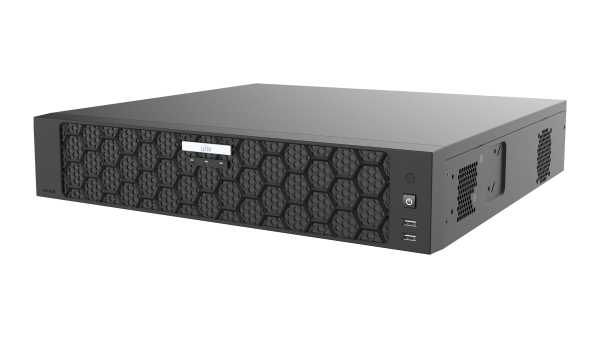

UNIVIEW - NVR508-32E-IQ - 32-Channel Network Video Recorder with 8 SATA Bays
Product Features
32-channel Prime Series 2U NVR with eight SATA bays (up to 24 TB each), RAID 0/1/5/6/10, 384 Mbps bandwidth and dual HDMI. No PoE. Hard drives not included.
NVR508-32E-IQ — 32-Channel Network Video Recorder with 8 SATA Bays
The Uniview NVR508-32E-IQ is a 32-channel Prime Series 2U NVR with eight SATA bays (up to 24 TB each), RAID 0, 1, 5, 6 and 10, and recording up to 32 MP.
What the NVR508-32E-IQ is for
It suits larger sites: incoming and outgoing bandwidth are each 384 Mbps with smart functions off (200 Mbps with them on). Decoding with smart off is listed up to 2 x 32MP, 8 x 4K or 32 x 1080P at 30 fps.
Smart by NVR covers face detection, SIP, UMD and plate comparison; with normal cameras SIP runs on up to 8 channels and UMD up to 16. It has two HDMI/VGA output groups, 16 alarm inputs, 10 alarm outputs, eSATA and dual gigabit ports. It has no PoE.
Key features
- 32 IP channels, recording up to 32 MP
- 384 Mbps in/out (smart off)
- 8 SATA bays, up to 24 TB each; RAID 0, 1, 5, 6, 10
- Dual HDMI (up to 4K at 60 Hz) and VGA outputs
- 16/10 alarm I/O, RS485, RS232, eSATA, 2 gigabit ports
- AC 100 to 240 V, 2U rack case
Full specification
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Smart Off: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On: 1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | Smart Off: 384Mbps Smart On: 200Mbps |
| Outgoing Bandwidth | Smart Off: 384Mbps Smart On: 200Mbps |
| Max Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Video/Audio Input | |
| IP Video Input | 32-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | HDMI1 and VGA1: 1/4/6/8/9/16/25/32; HDMI2 and VGA2: 1/4/6/8/9/16 |
| Corridor Mode Screen | HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Recording | |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Smart Function | |
| Smart by IPC | All channels (up to 16 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting |
| Smart by NVR | Face Detection, Face detection, Ultra Motion Detection (UMD), Smart Intrusion Prevention (SIP), Plate Comparison |
| Smart by NVR Analyzer Mode | Mixed Mode (+AcuSearch), Mixed Mode (SIP+UMD), Modes cannot active simultaneously, only one mode can active at a time. |
| VCA Search | Face detection Search, Behavior Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch, AcuTrack |
| AcuSearch | |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| AcuTrack | |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| face detection | |
| face detection by NVR | Up to 16-ch with UNV Face Detection Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
| SIP | |
| SIP by NVR with normal cameras | Up to 8-ch with normal camera (UNV and Third-part brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K) |
| UMD | |
| UMD by NVR with normal cameras | Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| Plate Comparison | |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| Capacity of Smart Snapshots | |
| Capacity of Snapshot Records | 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for video Metadata |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| Hard Disk | |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10 |
| External Interface | |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12 V |
| Power Supply | AC 100~240V |
| Working Environment | |
| Working Temperature | -10°C to 50°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 35W |
| Dimensions | |
| Weight (without HDD) | ≤ 5.5Kg |
| Height | 2U |
| Dimensions | 442mm × 432mm × 86mm |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| Peripheral Input | |
| POS | All channels |
What you will need
Power the cameras from PoE switches and connect them with network cable. No hard drives are supplied; add up to eight surveillance hard drives of up to 24 TB each. It runs from AC 100 to 240 V.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NVR508-32E-IQ with you before you buy — camera count and bandwidth, RAID level and total storage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras can the NVR508-32E-IQ record?
32 IP channels, with 384 Mbps incoming bandwidth (200 Mbps with smart functions on).
How many drives does the NVR508-32E-IQ take?
Eight SATA drives of up to 24 TB each, plus eSATA. Add a surveillance hard drive.
What RAID levels does it support?
RAID 0, 1, 5, 6 and 10.
Does the NVR508-32E-IQ have PoE?
No. Use PoE switches for the cameras.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NVR508-32E-IQ |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| In/Out Bandwidth | In: 384 Mbps / Out: 384 Mbps (smart off) |
| Storage Capacity | Up to 24 TB for each HDD |
| Power Consumption (without HDD) | ≤ 35W |
