TIC7626EL-GAF75-4X56-VH1 — Thermal and 4MP 56X Optical Bi-spectrum Positioning System

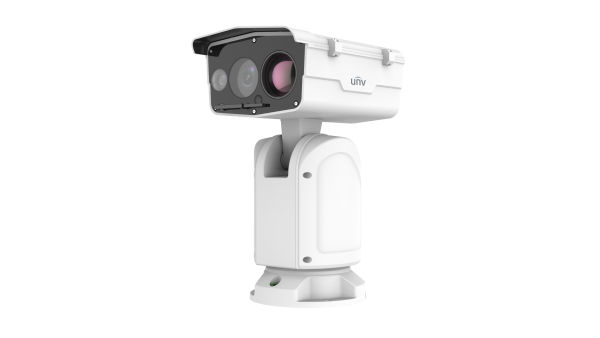

The Uniview TIC7626EL-GAF75-4X56-VH1 is a positioning system (heavy-duty PTZ) that carries a thermal channel alongside a 4MP optical camera with a 6 to 336 mm, 56X zoom lens on a 1/1.8" CMOS sensor.

What the TIC7626EL-GAF75-4X56-VH1 is for

It is for long-range perimeter, port, border and infrastructure sites. On the optical channel the field of view runs from 57.9° to 1.6°, and Uniview's DORI distances are 155.5 m to 4829.4 m to detect and 15.5 m to 482.9 m to identify. Illumination reaches up to 800 m, with 0 lux listed with the laser on.

Pan is 360° endless at up to 140°/s and tilt -90° to 45°, with 1024 presets, 3D positioning and auto tracking. The thermal channel lists NETD of 40 mK or better; Uniview's product page does not give the thermal resolution, so ask us for the thermal datasheet. Smoke detection and cross line and intrusion detection with human and vehicle classification are listed. It is rated IP66 with a working range of -40 to 70 degrees C.

Key features

• Thermal channel, NETD ≤ 40 mK
• 4MP optical, 1/1.8" CMOS, 120 dB WDR, ColorHunter with Wise-ISP
• 6 to 336 mm lens, 56X optical zoom
• Illumination up to 800 m
• Pan 360° endless, tilt -90° to 45°, auto tracking, 3D positioning
• RJ45 gigabit + SFP, alarm I/O 7/2, RS485; IP66, -40°C to 70°C

Full specification

What you will need

Power it from DC 48 V, DC 24 V or AC 24 V on the wired terminals; maximum draw is 135 W, so plan the supply and cable size for the run. It has a gigabit RJ45 port and an SFP port for fibre, or use a network cable for short runs. Record on a compatible NVR with surveillance hard drives. Mounting brackets and power supply are not included.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the TIC7626EL-GAF75-4X56-VH1 with you before you buy — the thermal channel specification, power and mounting for a 17.98 kg unit, and recorder compatibility — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What zoom does the TIC7626EL-GAF75-4X56-VH1 have?

The optical channel has a 6 to 336 mm lens with 56X optical zoom.

How is the TIC7626EL-GAF75-4X56-VH1 powered?

DC 48 V ±25%, DC 24 V ±15% or AC 24 V ±25%, maximum 135 W. It is not PoE powered.

How heavy is the TIC7626EL-GAF75-4X56-VH1?

17.98 kg, with dimensions of 366 × 283 × 509 mm.

What is the thermal resolution of the TIC7626EL-GAF75-4X56-VH1?

Uniview's product page lists NETD of 40 mK or better but does not give the thermal resolution; call us and we will check the full datasheet.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
