UNIVIEW - UAC-B122-AF28M-W - 2MP ColorHunter HD Fixed Mini Bullet Analogue Camera, 2.8mm

UAC-B122-AF28M-W — 2MP ColorHunter HD Fixed Mini Bullet Analogue Camera, 2.8mm

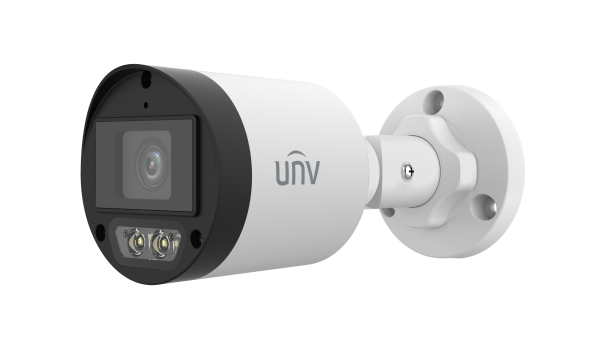

The UAC-B122-AF28M-W is a Uniview 2MP HD analogue mini bullet camera with a 2.8 mm M12 lens, a 101.5° horizontal angle of view and two white-light illuminators to 40 m for 24/7 colour images.

What the UAC-B122-AF28M-W is for

This analogue camera suits BNC-cabled systems where colour at night matters more than a covert infrared view. The video output supports TVI, AHD, CVI and CVBS. Minimum illumination is 0.005 lux (F1.6, AGC ON) and 0 lux with the white light on.

A built-in mic is listed, but the Camera Audio row names only TVI and CVI formats, so check your recorder before ordering if sound matters. IP67 means dust-tight and protected against temporary immersion, so it suits outdoor use. Corner and pole mounting are listed.

Key features

• 2MP (1080P) maximum resolution, 1/2.9" CMOS
• 2.8 mm M12 lens, 101.5° horizontal angle of view
• Two white-light illuminators to 40 m, 24/7 colour images
• Built-in mic; BNC output supporting TVI, AHD, CVI and CVBS
• 12 V DC, maximum 3.12 W
• IP67 rated; working temperature -30°C to 60°C

Full specification

What you will need

You need a 12 V DC supply (±25%, maximum 3.12 W) via the 5.5 mm power interface, BNC coax and a recorder that accepts the video format you choose. Use a compatible DVR or XVR that supports 2MP input, and add surveillance hard drives. If you want audio, tell us the recorder and we will check.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UAC-B122-AF28M-W with you before you buy — the video format and audio support of your recorder, power, and night lighting — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Does the UAC-B122-AF28M-W show colour at night?

Yes. It has two white-light illuminators with a 40 m illumination distance and Day/Night is listed as 24/7 colour images.

Which formats does the UAC-B122-AF28M-W output?

The BNC output supports TVI, AHD, CVI and CVBS.

Does the UAC-B122-AF28M-W record audio?

It has a built-in mic. The Camera Audio row lists TVI and CVI formats, so confirm your recorder supports audio over coax.

How is the UAC-B122-AF28M-W powered?

DC 12 V ±25%, maximum 3.12 W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
