UNIVIEW - UAC-B125-APF28LM - 5MP LightHunter PoC Fixed IR Mini Bullet Analogue Camera, 2.8mm

UAC-B125-APF28LM — 5MP LightHunter PoC Fixed IR Mini Bullet Analogue Camera, 2.8mm

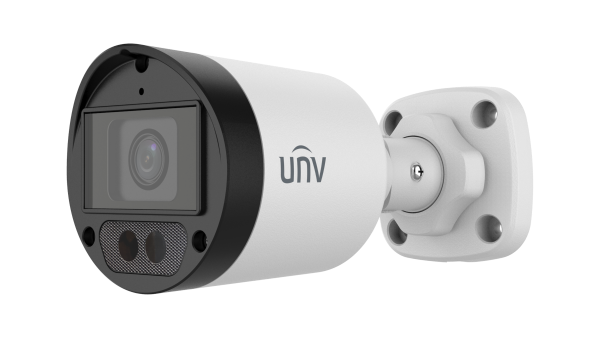

The UAC-B125-APF28LM is a Uniview 5MP HD analogue mini bullet camera with a 2.8 mm M12 lens, a 109.1° horizontal angle of view and two IR illuminators to 40 m.

What the UAC-B125-APF28LM is for

This analogue camera suits BNC-cabled systems. The video output supports TVI, AHD, CVI and CVBS, and PoC (power over coax) is listed, so a PoC recorder can power it down the same coax and no separate power supply is needed at the camera. Minimum illumination is 0.005 lux (F1.6, AGC ON) and 0 lux with IR on, and Smart IR is supported.

A built-in mic is listed. The Camera Audio row names TVI and CVI formats, and Uniview notes that audio on PoC series cameras only works with its PoC series XVRs, so check your recorder before ordering if sound matters. IP67 means dust-tight and protected against temporary immersion, so it suits outdoor use. Corner and pole mounting are listed.

Key features

• 5MP maximum resolution, 1/2.7" CMOS
• 2.8 mm M12 lens, 109.1° horizontal angle of view
• Two IR illuminators to 40 m, Smart IR
• Built-in mic; BNC output supporting TVI, AHD, CVI and CVBS
• 12 V DC or PoC, maximum 3.4 W
• IP67 rated; working temperature -30°C to 60°C

Full specification

What you will need

You need a 12 V DC supply (±25%, maximum 3.4 W) via the 5.5 mm power interface, or a PoC-capable recorder that powers the camera over the coax, plus BNC coax and a recorder that accepts the video format you choose. Use a compatible DVR or XVR that supports 5MP input, and add surveillance hard drives. If you want audio, tell us the recorder and we will check.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UAC-B125-APF28LM with you before you buy — the video format, PoC and audio support of your recorder, and night lighting — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Can the UAC-B125-APF28LM be powered over the coax?

Yes. Power is listed as DC 12 V ±25% or PoC, so a PoC recorder can power it down the BNC cable.

What is the night vision range of the UAC-B125-APF28LM?

It has two IR illuminators with a 40 m illumination distance, and 0 lux is listed with IR on.

Which formats does the UAC-B125-APF28LM output?

The BNC output supports TVI, AHD, CVI and CVBS.

Does the UAC-B125-APF28LM record audio?

It has a built-in mic. Uniview notes that audio on PoC series cameras only works with its PoC series XVRs.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
