UNIVIEW - UAC-D125-AF28M - 5MP LightHunter HD IR Fixed Dome Analogue Camera, 2.8mm

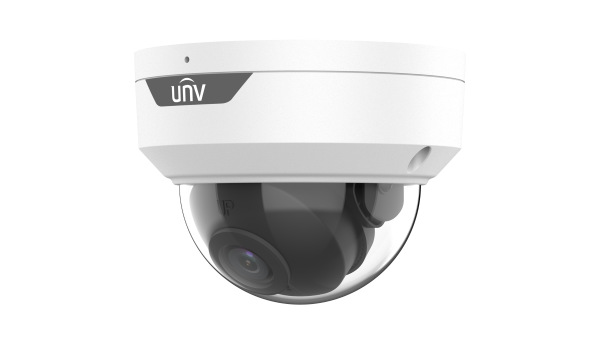

UAC-D125-AF28M — 5MP LightHunter HD IR Fixed Dome Analogue Camera, 2.8mm

The UAC-D125-AF28M is a Uniview 5MP HD analogue dome camera with a 2.8 mm M12 lens, a 109.1° horizontal angle of view and an IR illuminator to 30 m.

What the UAC-D125-AF28M is for

This analogue dome suits BNC-cabled systems covering entrances, rooms and corridors. The video output supports TVI, AHD, CVI and CVBS. Minimum illumination is 0.005 lux (F1.6, AGC ON) and 0 lux with IR on, and Smart IR is supported.

A built-in mic is listed, but the Camera Audio row names only TVI and CVI formats, so check your recorder before ordering if sound matters. It is rated IP67 and IK10, so it suits outdoor and vandal-prone positions. Wall, pole, corner, tilted and pendant mounting are listed. This is the white version; a black version, UAC-D125-AF28M-BLACK, is also available.

Key features

• 5MP maximum resolution, 1/2.7" CMOS
• 2.8 mm M12 lens, 109.1° horizontal angle of view
• IR to 30 m, Smart IR
• Built-in mic; BNC output supporting TVI, AHD, CVI and CVBS
• 12 V DC, maximum 3.3 W
• IP67 and IK10; working temperature -30°C to 60°C

Full specification

What you will need

You need a 12 V DC supply (±25%, maximum 3.3 W) via the 5.5 mm power interface, BNC coax and a recorder that accepts the video format you choose. Use a compatible DVR or XVR that supports 5MP input, and add surveillance hard drives. If you want audio, tell us the recorder and we will check.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UAC-D125-AF28M with you before you buy — the video format and audio support of your recorder, power, and night lighting — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What is the night vision range of the UAC-D125-AF28M?

It has one IR illuminator with a 30 m illumination distance, and 0 lux is listed with IR on.

Which formats does the UAC-D125-AF28M output?

The BNC output supports TVI, AHD, CVI and CVBS.

Does the UAC-D125-AF28M record audio?

It has a built-in mic. The Camera Audio row lists TVI and CVI formats, so confirm your recorder supports audio over coax.

Is the UAC-D125-AF28M vandal resistant?

It is rated IP67 and IK10, with a working range of -30°C to 60°C.
