UAC-D128-ADF28MS — 8MP HD IR Fixed Dome Analogue Camera, 2.8mm

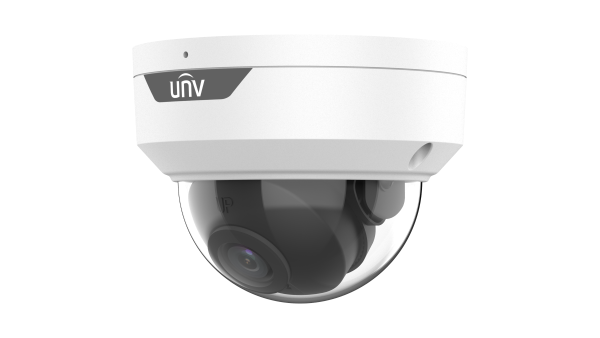

The Uniview UAC-D128-ADF28MS is an 8MP (4K) HD analogue dome camera from Uniview's Whale series, with a fixed 2.8 mm lens, one IR illuminator and a metal IP67 and IK10 housing.

What the UAC-D128-ADF28MS is for

The 1/2.7" CMOS sensor delivers 4K (3840 × 2160), 5MP and 4MP modes over coax, and the BNC output can be switched between TVI, AHD, CVI and CVBS. The 2.8 mm lens gives a 109.1° horizontal angle of view, which suits wide areas close to the camera such as rooms, entrances and yards.

The IR illuminator reaches 30 m and minimum illumination is 0.005 lux (F1.6, AGC ON), or 0 lux with IR on. WDR is rated at 120 dB, and the datasheet lists wall, pole, corner and pendant mounting. Operating range is -30°C to 60°C.

Key features

• 8MP (4K) maximum resolution, 1/2.7" CMOS sensor
• Fixed 2.8 mm M12 lens, 109.1° horizontal angle of view
• One IR illuminator, 30 m
• 120 dB WDR, 2D/3D noise reduction
• BNC output: TVI, AHD, CVI or CVBS
• Built-in microphone
• IP67 and IK10, metal housing, 12 V DC, max 3.7 W

Full specification

What you will need

You need a DVR that accepts TVI, AHD or CVI input at the resolution you intend to record; the BNC output supports TVI, AHD, CVI and CVBS (4K at 15 fps by default on CVI, plus 5MP and 4MP modes). Power is DC 12 V (±25%) through a 5.5 mm power interface, up to 3.7 W, from a separate 12 V supply. Add surveillance hard drives to the recorder for storage. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UAC-D128-ADF28MS with you before you buy — which recorder resolutions and formats suit it, the 12 V DC supply and cable runs — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What resolution is the UAC-D128-ADF28MS?

It is an 8MP camera with a 4K mode of 3840 × 2160, plus 5MP and 4MP modes. Your DVR must support the mode you choose.

Does the UAC-D128-ADF28MS have audio?

Yes, it has a built-in microphone. Audio is carried over the coax on the CVI modes listed in the specification.

How far does the UAC-D128-ADF28MS see at night?

The IR illuminator has a stated distance of 30 m.

Is the UAC-D128-ADF28MS vandal resistant?

It is rated IK10 for impact and IP67 for weather, in a metal housing.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
