UNIVIEW - UAC-P112-AF40-W - 2MP Full-colour White-light Pan-Tilt Analogue Camera, 4mm

UAC-P112-AF40-W — 2MP Full-colour White-light Pan-Tilt Analogue Camera, 4mm

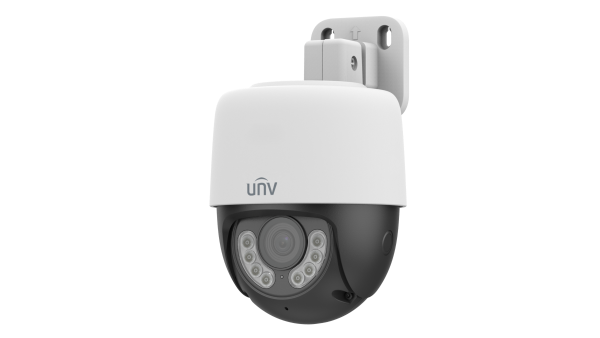

The Uniview UAC-P112-AF40-W is a 2MP HD analogue pan-tilt camera from Uniview's Dolphin series. It uses eight white-light illuminators rather than infrared, so the datasheet lists 24/7 colour images.

What the UAC-P112-AF40-W is for

A 1/2.9" CMOS sensor gives 1080P and 720P over coax, with a BNC output that supports TVI, AHD, CVI and CVBS. The fixed 4.0 mm lens has an 83.8° horizontal angle of view, a little narrower than a 2.8 mm lens, so subjects at mid distance fill more of the frame.

It pans 0° to 345° at up to 40°/s and tilts 0° to 90° at up to 30°/s, with 32 presets. Control is over RS485 or the BNC (coax) connection at 1200 to 9600 bps.

The white-light illuminators reach 30 m. Minimum illumination is 0.005 lux (F1.6, AGC ON), or 0 lux with the white light on. The housing is rated IP66, the camera works from -30°C to 60°C and the datasheet lists wall and pendant mounting.

Key features

• 2MP (1080P) maximum resolution, 1/2.9" CMOS sensor
• Fixed 4.0 mm lens, 83.8° horizontal angle of view
• Eight white-light illuminators, 30 m, 24/7 colour images
• DWDR, 2D/3D noise reduction, digital defog
• Pan 0° to 345°, tilt 0° to 90°, 32 presets; control via RS485 or BNC
• BNC output: TVI, AHD, CVI or CVBS
• IP66, 12 V DC, max 8.5 W

Full specification

What you will need

You need a DVR that accepts TVI, AHD or CVI input at the resolution you intend to record; the BNC output supports TVI, AHD, CVI and CVBS (1080P and 720P). Power is DC 12 V (±25%) through a 5.5 mm power interface, up to 8.5 W, from a separate 12 V supply. Add surveillance hard drives to the recorder for storage. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UAC-P112-AF40-W with you before you buy — which recorder resolutions and formats suit it, the 12 V DC supply and cable runs — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Does the UAC-P112-AF40-W use infrared?

No. It has eight white-light illuminators with a stated distance of 30 m, and the datasheet lists 24/7 colour images.

What lens does the UAC-P112-AF40-W have?

A fixed 4.0 mm lens with an 83.8° horizontal angle of view.

How is the UAC-P112-AF40-W powered?

From DC 12 V (±25%) through a 5.5 mm power interface, drawing up to 8.5 W.

Can the UAC-P112-AF40-W pan and tilt?

Yes. It pans 0° to 345° and tilts 0° to 90°, with 32 presets, controlled over RS485 or BNC.

Can the UAC-P112-AF40-W be used outdoors?

It is rated IP66 and works from -30°C to 60°C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
