UNIVIEW - UAC-T115-F40-W - 5MP ColourHunter HD Fixed Turret Analogue Camera, 4mm

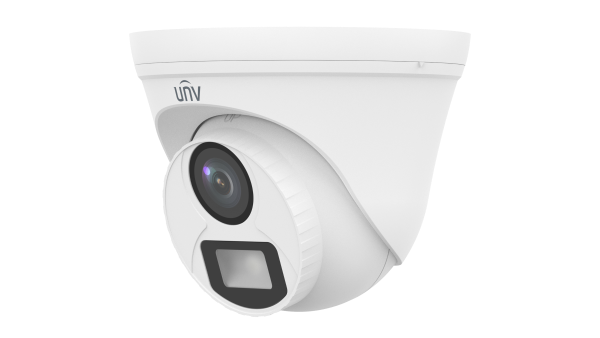

UAC-T115-F40-W — 5MP ColourHunter HD Fixed Turret Analogue Camera, 4mm

The Uniview UAC-T115-F40-W is the 4 mm lens version of the UAC-T115 5MP ColourHunter HD turret analogue camera. It uses white light rather than infrared to give colour images in the dark.

What the UAC-T115-F40-W is for

The 1/2.7" CMOS sensor offers 5MP at 25, 20 or 12.5 fps depending on format, with 4MP also available, over a BNC output that supports TVI, AHD, CVI and CVBS. The 4 mm lens gives a narrower view than the 2.8 mm UAC-T115-F28-W, so it suits mid-distance coverage such as driveways and entrances. Uniview's published angle-of-view figures are for the 2.8 mm version, so they are not repeated here.

White light reaches 20 m, and minimum illumination is 0.01 lux (F1.6, AGC ON), or 0 lux with the white light on. It is rated IP67 and works from -30°C to 60°C.

Key features

• 5MP maximum resolution, 1/2.7" CMOS sensor
• Fixed 4 mm lens
• White-light illuminator, 20 m, for colour at night
• BNC output: TVI, AHD, CVI or CVBS
• IP67, -30°C to 60°C
• 12 V DC, max 2.4 W

Full specification

What you will need

You need a DVR that accepts TVI, AHD or CVI input at the resolution you intend to record; the BNC output supports TVI, AHD, CVI and CVBS (5MP and 4MP modes). Power is DC 12 V (±25%) through a 5.5 mm power interface, up to 2.4 W, from a separate 12 V supply. Add surveillance hard drives to the recorder for storage. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UAC-T115-F40-W with you before you buy — which recorder resolutions and formats suit it, the 12 V DC supply and cable runs — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What is the difference between the UAC-T115-F40-W and UAC-T115-F28-W?

The lens. The F40 has a 4 mm lens for a narrower, longer view; the F28 has a 2.8 mm lens for a wider view.

Does the UAC-T115-F40-W give colour at night?

Yes, it uses a white-light illuminator with a stated distance of 20 m.

How is the UAC-T115-F40-W powered?

From DC 12 V (±25%), drawing up to 2.4 W.
