UNIVIEW - UAC-T145-AF28LM-DL-BLACK - 5MP ColorHunter Smart Dual Light Turret Analogue Camera, 2.8mm, Black

UAC-T145-AF28LM-DL-BLACK — 5MP ColorHunter Smart Dual Light Turret Analogue Camera, 2.8mm, Black

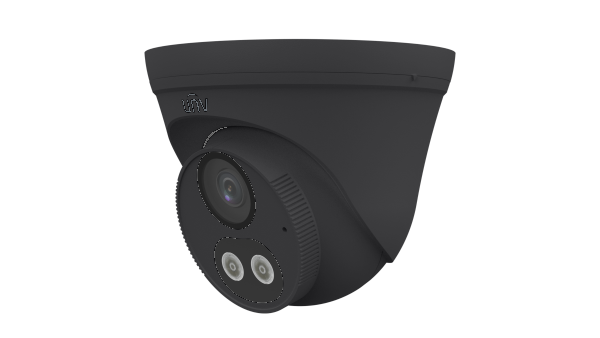

The Uniview UAC-T145-AF28LM-DL-BLACK is the black-housing version of the UAC-T145-AF28LM-DL, a 5MP ColorHunter Smart Dual Light turret analogue camera with a fixed 2.8 mm lens.

What the UAC-T145-AF28LM-DL-BLACK is for

The 1/2.7" CMOS sensor gives 5MP at 25, 20 or 12.5 fps depending on format, with 4MP also available, over a BNC output that supports TVI, AHD, CVI and CVBS. The 2.8 mm lens has a 110.0° horizontal angle of view. The black finish suits dark fascias and soffits where a white camera would stand out.

IR and white-light illuminators each reach 40 m. Minimum illumination is 0.005 lux (F1.6, AGC ON), or 0 lux with the illuminator on. It is rated IP67, works from -30°C to 60°C and has a built-in microphone.

Key features

• 5MP maximum resolution, 1/2.7" CMOS sensor
• Fixed 2.8 mm lens, 110.0° horizontal angle of view
• Smart dual light: IR and white light, 40 m each
• BNC output: TVI, AHD, CVI or CVBS
• Built-in microphone
• IP67, 12 V DC, max 3.5 W
• Black housing

Full specification

What you will need

You need a DVR that accepts TVI, AHD or CVI input at the resolution you intend to record; the BNC output supports TVI, AHD, CVI and CVBS (5MP and 4MP modes). Power is DC 12 V (±25%) through a 5.5 mm power interface, up to 3.5 W, from a separate 12 V supply. Add surveillance hard drives to the recorder for storage. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UAC-T145-AF28LM-DL-BLACK with you before you buy — which recorder resolutions and formats suit it, the 12 V DC supply and cable runs — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the UAC-T145-AF28LM-DL-BLACK the same camera as the white version?

Yes. It shares the specification of the UAC-T145-AF28LM-DL; only the housing colour differs.

How far do the lights reach on the UAC-T145-AF28LM-DL-BLACK?

IR and white light each have a stated distance of 40 m.

Does the UAC-T145-AF28LM-DL-BLACK have audio?

Yes, it has a built-in microphone.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
