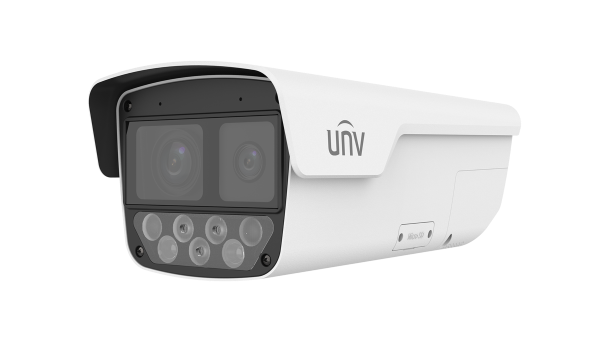

UNIVIEW - UNV-IPC28184EA-ADX5K-F40-I1 - Alphaview ColorHunter Multi-channel Network Camera, 4mm
Product Features
Uniview Alphaview multi-channel ColorHunter network camera. Channel 1 is 4MP with a 4.0 mm F1.0 lens and warm light to 30 m. IP66, AC 24 V, two-way audio; recorder not included.
UNV-IPC28184EA-ADX5K-F40-I1 — Alphaview ColorHunter Multi-channel Network Camera, 4mm
The Uniview IPC28184EA-ADX5K-F40-I1 is a multi-channel network camera from Uniview's Alphaview series. Uniview's published specification is set out per channel, and the figures below are for channel 1.
What the UNV-IPC28184EA-ADX5K-F40-I1 is for
Channel 1 is a 4MP ColorHunter (Wise-ISP) channel with a 1/1.8" sensor and a fixed 4.0 mm F1.0 lens, giving a 94.7° horizontal view and DORI distances of 79.1 m to detect and 7.9 m to identify. Warm light reaches up to 30 m, and minimum illumination is 0.0005 lux in colour.
It is a larger, mains-transformer powered unit (AC 24 V, up to 31 W) with a heater, a gigabit network port, built-in dual microphone and speaker, RS485 and 3/2 alarm I/O, rated IP66 for -30°C to 60°C. Ask us for the full datasheet covering the other channel(s) before specifying.
Key features
- Alphaview multi-channel camera; channel 1: 4MP, 1/1.8" CMOS, 120 dB WDR
- Channel 1 lens: fixed 4.0 mm F1.0, 94.7° horizontal view
- ColorHunter with Wise-ISP, warm light up to 30 m
- Built-in dual microphone and speaker, two-way audio
- 1 × gigabit Ethernet, RS485, 3/2 alarm I/O, heater
- IP66, AC 24 V, max 31 W, microSD up to 512 GB
Full specification (channel 1)
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| Adjustment Angle | Tilt: -10° to 10° (electric control, for installation and debugging) |
| S/N | >56 dB |
| Lens | |
| Focal Length | 4.0 mm |
| Iris | F1.0 |
| Iris Type | Fixed |
| Field of View (H) | 94.7° |
| Field of View (V) | 50.3° |
| Field of View (D) | 116.5° |
| DORI | |
| DORI Distance (Detect) | 79.1 m |
| DORI Distance (Observe) | 31.7 m |
| DORI Distance (Recognize) | 15.8 m |
| DORI Distance (Identify) | 7.9 m |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (Warm Light) | Up to 30m |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
| Image | |
| Low Illumination Characteristics | ColorHunter with Wise-ISP |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC / BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Interface | |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
| General | |
| Protection | IP66 (IEC 60529) |
| Power | AC 24 V±25% |
| Power Consumption | Max. 31 W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | 326 mm × 147 mm × 121 mm (L × W × H) |
| Weight | 2.11 kg |
| Material | Metal + Plastic |
| Heater | Support |
| Working Environment | -30°C to 60°C, Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
What you will need
An AC 24 V supply rated for at least 31 W, connected with wires and cold-pressed terminals; it is not powered by PoE. Use a network cable to the gigabit port and record to a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. None of these is supplied.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the UNV-IPC28184EA-ADX5K-F40-I1 with you before you buy — what each channel covers, the AC 24 V supply and which recorder suits it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How is the UNV-IPC28184EA-ADX5K-F40-I1 powered?
From AC 24 V ±25%, with maximum consumption of 31 W. PoE is not listed.
What lens does channel 1 of the UNV-IPC28184EA-ADX5K-F40-I1 use?
A fixed 4.0 mm F1.0 lens with a 94.7° horizontal field of view.
Does the UNV-IPC28184EA-ADX5K-F40-I1 have audio?
Yes, a built-in dual microphone and speaker, with two-way audio.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | UNV-IPC28184EA-ADX5K-F40-I1 |
|---|---|
| Manufacturer | Uniview |
| Colour | White |
| Max Resolution | 4MP |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Min. Illumination | Colour: 0.0005 Lux (F1.0, AGC ON) |
| WDR | 120 dB |
| Lens Type | Fixed |
| Max. IR Range | Up to 30 m |
| Protection Level, Ingress Protection | IP66 |
| Operating Temperature | -30°C to 60°C |
| Local Storage | MicroSD, up to 512 GB |
| Indoor/Outdoor | Indoor / Outdoor |
