UNIVIEW - UNV-IPC312LP-ADF20KC-DL - 2MP Elevator Mini Dome Network Camera with Two-way Audio, 2.0mm

UNV-IPC312LP-ADF20KC-DL — 2MP Elevator Mini Dome Network Camera with Two-way Audio, 2.0mm

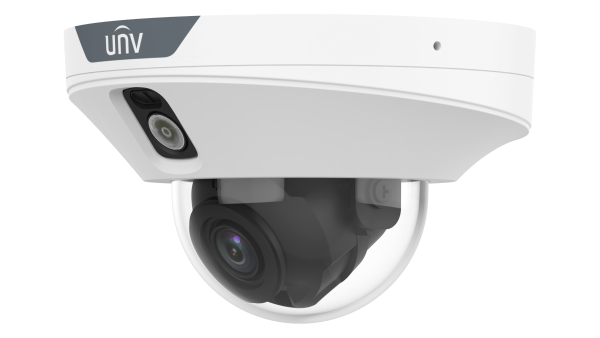

The Uniview IPC312LP-ADF20KC-DL is a 2MP fixed mini dome network camera from Uniview's EasyProject series, designed with lift (elevator) functions, a wide 2.0 mm lens and a built-in microphone and speaker.

What the UNV-IPC312LP-ADF20KC-DL is for

The 2.0 mm lens gives a 126° horizontal field of view, enough to cover a lift car from a corner position. The datasheet lists elevator entrance detection (motorcycle and bicycle classification), TOF tampering detection, elevator status display (current floor, stop/up/down and speed) and temperature and humidity detection, plus cross line and intrusion detection based on human body detection.

IR reaches 10 m at 850 nm with Smart IR, and Uniview's DORI distances are 31.0 m to detect and 3.1 m to identify. The plastic housing has no ingress rating listed and the working range is -10°C to 40°C, so this is an indoor camera. Two-way audio lets staff speak to passengers through the camera.

Key features

• 2MP (1080P), 1/2.8" CMOS sensor, 120 dB WDR
• Fixed 2.0 mm lens, 126° horizontal view
• Elevator functions: entrance detection, floor and status display, TOF tampering detection
• 850 nm IR to 10 m with Smart IR
• Built-in microphone and speaker, two-way audio, 1/1 alarm I/O
• PoE (802.3af) or 12 V DC, max 5.5 W, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 5.5 W. Use a network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB, with surveillance hard drives in the recorder. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-IPC312LP-ADF20KC-DL with you before you buy — the lens and coverage, how to power it and which recorder suits it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the UNV-IPC312LP-ADF20KC-DL designed for lifts?

Yes. The datasheet lists elevator entrance detection, elevator status display (floor, direction and speed) and TOF tampering detection.

Can the UNV-IPC312LP-ADF20KC-DL be used outdoors?

It is intended for indoor use: the working range is -10°C to 40°C and no ingress rating is listed.

Does the UNV-IPC312LP-ADF20KC-DL have a speaker?

Yes, it has a built-in speaker and microphone and supports two-way audio.

Is the UNV-IPC312LP-ADF20KC-DL PoE?

Yes, PoE (IEEE 802.3af) or DC 12 V ±25%, up to 5.5 W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
