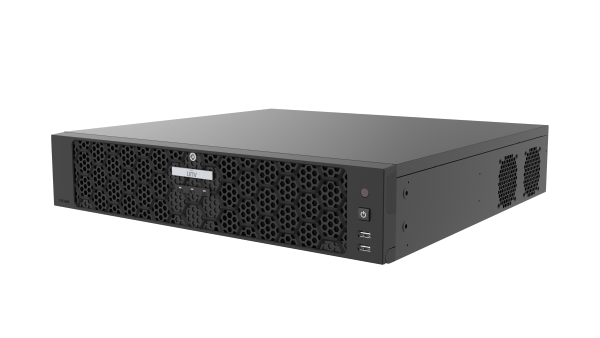

UNIVIEW - UNV-NVR508-32E-R-IQ - 32-Channel 8-Bay NVR with RAID and Redundant Power
Product Features
Uniview NVR508-32E-R-IQ 32-channel 2U NVR with 8 SATA bays (up to 24 TB each), RAID 0/1/5/6/10, hot swap, redundant power support and 384 Mbps incoming bandwidth. Hard drives not included.
UNV-NVR508-32E-R-IQ — 32-Channel 8-Bay NVR with RAID and Redundant Power
The Uniview NVR508-32E-R-IQ is a 32-channel, 2U network video recorder with 8 SATA bays, RAID 0, 1, 5, 6 and 10, hot swap and redundant power supply support.
What the UNV-NVR508-32E-R-IQ is for
It suits larger IP camera systems that need resilient storage. Incoming and outgoing bandwidth are each 384 Mbps with Smart Off (200 Mbps with Smart On), and it decodes Ultra 265, H.265 and H.264 at resolutions up to 32 MP.
Smart functions by the NVR include face detection, UMD, SIP and plate comparison, plus AcuSearch and AcuTrack on all channels with Uniview SIP/UMD cameras. It has two HDMI and two VGA outputs (HDMI1 up to 4K at 60 Hz) and two gigabit network ports.
Key features
- 32 IP video input channels, recording up to 32 MP
- 8 SATA interfaces, up to 24 TB per drive, hot swap
- RAID 0, 1, 5, 6 and 10
- 384 Mbps incoming and outgoing bandwidth (Smart Off)
- Redundant power supply support, AC 100 to 240 V
- 2 × gigabit RJ45, 16 alarm in, 10 alarm out, eSATA
Full specification
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Smart Off: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On: 1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | Smart Off: 384Mbps Smart On: 200Mbps |
| Outgoing Bandwidth | Smart Off: 384Mbps Smart On: 200Mbps |
| Max Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | |
| IP Video Input | 32-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | HDMI1 and VGA1: 1/4/6/8/9/16/25/32; HDMI2 and VGA2: 1/4/6/8/9/16 |
| Corridor Mode Screen | HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Recording | |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Smart Function | |
| Smart by IPC | All channels (up to 16 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting |
| Smart by NVR | Face Detection, Face detection, Ultra Motion Detection (UMD), Smart Intrusion Prevention (SIP), Plate Comparison |
| Smart by NVR Analyzer Mode | Mixed Mode (+AcuSearch), Mixed Mode (SIP+UMD), Modes cannot active simultaneously, only one mode can active at a time. |
| VCA Search | Face detection Search, Behavior Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch, AcuTrack |
| AcuSearch | |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| AcuTrack | |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| face detection | |
| face detection by NVR | Up to 16-ch with UNV Face Detection Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
| SIP | |
| SIP by NVR with normal cameras | Up to 8-ch with normal camera (UNV and Third-part brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K) |
| UMD | |
| UMD by NVR with normal cameras | Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| Plate Comparison | |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| Capacity of Smart Snapshots | |
| Capacity of Snapshot Records | 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for video Metadata |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10 |
| Hot Swap | Support |
| External Interface | |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12 V |
| Power Supply | AC 100~240V |
| Redundant Power Supply | Support |
| Working Environment | |
| Working Temperature | -10 °C to 50 °C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 35W |
| Dimensions | |
| Weight (without HDD) | ≤ 6.5 kg |
| Height | 2U |
| Dimensions | 443mm × 448mm × 93mm |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| Peripheral Input | |
| POS | All channels |
What you will need
You need up to 32 IP cameras and a PoE switch to power them, as no PoE ports are listed, plus network cable. Add surveillance hard drives as none are listed as included. Power is AC 100 to 240 V.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the UNV-NVR508-32E-R-IQ with you before you buy — camera count, combined bitrate, RAID level and storage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras does the NVR508-32E-R-IQ support?
32 IP channels, with 384 Mbps incoming bandwidth with Smart Off or 200 Mbps with Smart On.
What RAID levels does it support?
RAID 0, 1, 5, 6 and 10, with hot swap, disk groups and redundant storage.
Are hard drives included?
None are listed as included. It has 8 SATA interfaces taking drives of up to 24 TB each.
Does the NVR508-32E-R-IQ have PoE ports?
No PoE ports are listed, so use a PoE switch for PoE cameras.
Does it support a redundant power supply?
Yes, Uniview lists redundant power supply support. Power input is AC 100 to 240 V.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | UNV-NVR508-32E-R-IQ |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| Max No. of Channels | 32 ch |
