UNIVIEW - UNV-OEP-K14-85 - 85KG Door Closer

UNV-OEP-K14-85 — 85KG Door Closer

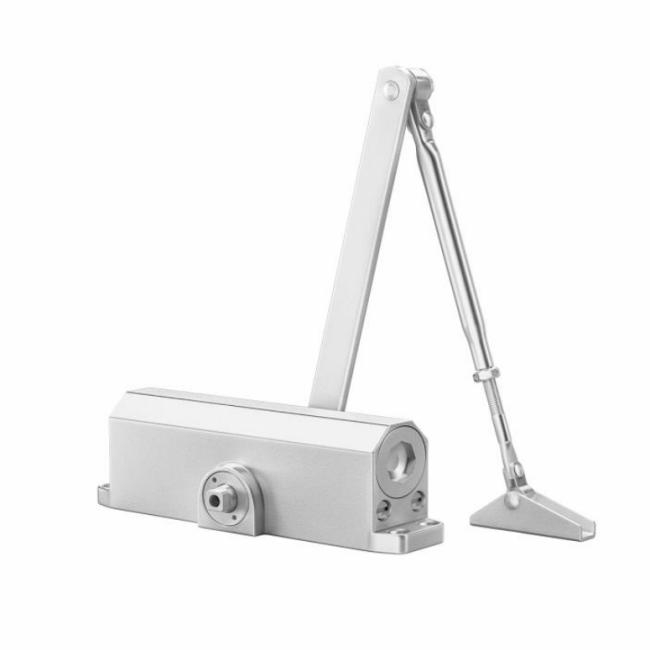

The Uniview OEP-K14-85 is a hydraulic door closer mounted on the door head. It closes the door automatically after it has been opened, using stored compression.

What the UNV-OEP-K14-85 is for

It is rated EN4 for doors up to 85kg and up to 1100 mm wide, and suits controlled entrances where the door must close and latch every time, such as fire exits, offices, schools and other access-controlled doors.

Closing speed, closing torque and latching speed are adjustable, with a two-section speed setting and a closing time of 3 to 40 seconds from 90°. Backcheck adds damping beyond 65° so the door is not thrown against the wall. It can be fitted to a left or right hand door leaf.

Key features

• EN4 closing force, for doors up to 85kg and 1100 mm wide
• Adjustable closing torque, closing speed and latching speed
• Closing time adjustable from 3 to 40 s from 90°
• Backcheck from 65°, maximum opening angle 180°
• Anti-freeze hydraulic fluid, -30°C to 60°C operation
• Rated for 1 million cycles (MCBF)

Full specification

What you will need

Fixings suited to your door and frame, and a door within the 85kg and 1100 mm limits. On access-controlled doors it is normally paired with an electric lock and exit button; see the access control range or the wider Uniview range.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-OEP-K14-85 with you before you buy — door weight and width, and the lock it works with — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What size door does the OEP-K14-85 suit?

Doors up to 85kg and up to 1100 mm wide, with EN4 closing force.

Can the closing speed be adjusted?

Yes. Closing torque, closing speed and latching speed are adjustable, with a closing time of 3 to 40 seconds from 90°.

Can it be fitted to a left or right hand door?

Yes, Uniview states it can be installed on either the left or right door leaf.

Does it hold the door open?

A 90° stop function is available but must be specified when ordering. Ask us before you buy if you need it.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
