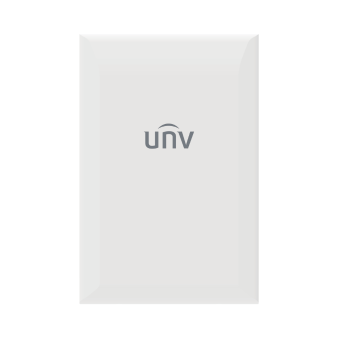

UNIVIEW - WLN-EB5N-IN - 802.11a/n Outdoor Wireless Bridge with 12dBi Antenna
Product Features
The Uniview WLN-EB5N-IN is an outdoor wireless bridge with 802.11a/n, a 12dBi antenna and IP65 protection. It runs from a 12V passive PoE supply, so check your injector or power source matches before you order.
WLN-EB5N-IN — 802.11a/n Outdoor Wireless Bridge with 12dBi Antenna
The Uniview WLN-EB5N-IN is an outdoor wireless bridge working to the 802.11a/n protocol, with a 12dBi antenna, IP65 protection and pole mounting for poles up to 55mm in diameter. It is powered by 12V passive PoE.
What the WLN-EB5N-IN is for
The WLN-EB5N-IN carries a network connection over the air between points. Uniview lists Station and WDS Station operating modes, in Bridge or Router network mode, so it is used as the client end of a link with a matching access point at the other end.
The 12dBi antenna has a beam width of 35 degrees horizontally and vertically. IP65 means dust-tight and protected against water jets, and the bridge is specified for -40 to 65 degrees C with a wind survivability of 134km/h. The two network ports are 10/100Mbps.
Key features
- Wireless bridge working to the 802.11a/n protocol
- 12dBi antenna, 35 degree horizontal and vertical beam
- Maximum transmitted power 24dBm
- IP65, -40 to 65 degrees C, 134km/h wind survivability
- Pole mounting for poles up to 55mm in diameter
- Two 10/100Mbps network ports; 12V passive PoE, 6W maximum
Full specification
| Hardware Specification | |
| Dimensions(mm) | 140x93x43mm |
| Weight(kg) | 0.19kg |
| Installation | Pole mounting, Diameter≤55mm |
| Protection Level | IP65 |
| Antenna Gain | 12dBi |
| Beam Width | H：35°，V：35° |
| Max Power Consumption(W) | 6W |
| Average Power Consumption(W) | 4W |
| CPU | AR9344 |
| DDR \ Memory | 64MB DDR2, 8MB Flash |
| Physical Interface | 2*10/100Mbps |
| Indicator Light | 1*Power Indicator, 1*WLAN Indicator, 1*LAN Indicator, 3* Signal strength indicator |
| Maximum Transmitted Power | 24dBm |
| Working Temperature | -40°C~65°C |
| Working Humidity | 5%~95%RH Non-condensing |
| Surge | POE/GE: CM 2KV , DM 1KV |
| ESD Protection | Contact 6KV , Air 8KV |
| Wind Survivability | 134km/h |
| Power Supply | 12V Passive POE |
| Storage Temperature | -40°C~85°C |
| Software Specification | |
| Protocol | 802.11a/n |
| Frequency | 5180~5320MHz, 5745~5825MHz (China), 5180~5320MHz, 5500~5720MHz, 5745~5825MHz (United States), 5160~5340MHz, 5480~5720MHz, 5745~5865MHz (India), 5160~5340MHz, 5480~5720MHz, 5745~5825MHz (United Arab Emirates), 5745~5805MHz (Indonesia), Supported frequency range: 4920~6100MHz (should depend on the local regulation), * The above frequencies need specific version support |
| Operating Mode | Station, WDS Station |
| Network Mode | Bridge/ Router |
| Management | Support Web/AC/SNMP |
| Other | Timed restart，Support VLAN，QoS, Watchdog |
| Security | WPA2-PSK, Hidden SSID, IP/MAC Filtering |
What you will need
You need a matching access point at the other end of the link, as this unit lists Station and WDS Station modes only. It takes 12V passive PoE, which is not the same as standard 802.3af or 802.3at PoE, so check before connecting a normal PoE switch. Add network cable to the connected device and a pole of 55mm diameter or less to mount on. Frequency use depends on local regulation, so tell us and we will check.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the WLN-EB5N-IN with you before you buy — the 12V passive PoE supply, the access point at the other end of the link and pole mounting — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How is the Uniview WLN-EB5N-IN powered?
It uses a 12V passive PoE supply. Maximum power consumption is 6W and average is 4W.
Can the WLN-EB5N-IN be mounted on a pole?
Yes. Uniview lists pole mounting for poles up to 55mm in diameter. It weighs 0.19kg and measures 140x93x43mm.
What operating modes does the WLN-EB5N-IN support?
Station and WDS Station, in Bridge or Router network mode. Management is by web, AC or SNMP.
What protection rating does the WLN-EB5N-IN have?
It is rated IP65 and specified for -40 to 65 degrees C, with a wind survivability of 134km/h.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | WLN-EB5N-IN |
|---|---|
| Manufacturer | Uniview |
| Colour | White |
