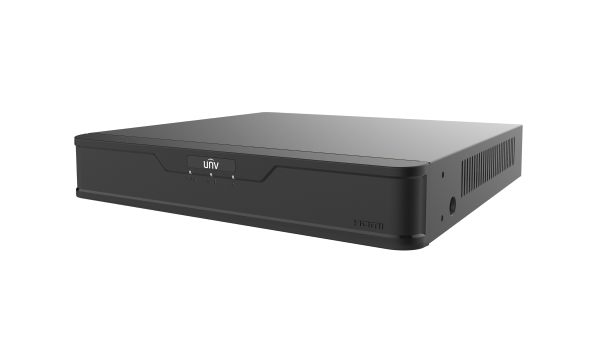

UNIVIEW - XVR301-16Q3 - 16-Channel Digital Video Recorder with 1 SATA Bay
Product Features
The Uniview XVR301-16Q3 is an XVR with 16 BNC analogue inputs, 1 SATA bay and a 4K HDMI output. Add a surveillance hard drive before use, as none is listed with it.
XVR301-16Q3 — 16-Channel Digital Video Recorder with 1 SATA Bay
The Uniview XVR301-16Q3 is a digital video recorder with 16 BNC analogue inputs, an IP video input of 8 channels (24 at most) and 1 SATA bay. It also lists a 4K HDMI output and 1000 M Ethernet.
What the XVR301-16Q3 is for
The XVR301-16Q3 accepts analogue cameras on AHD, TVI and CVI up to 8MP at 15fps, with lower resolutions down to 720P and CVBS also listed. Recording resolutions are listed as 8MP Lite, 5MP Lite, 4MP Lite, 1080P, 720P or D1.
It lists Ultra Motion Detection (UMD) and SIP detection (intrusion, line crossing, enter and leave area) by the recorder, with face and behaviour search. It has 4 alarm inputs and 1 alarm output. Face detection by the recorder is listed on 2 channels.
Key features
- 16 BNC analogue inputs, plus an IP video input of 8 channels (24 at most)
- Accepts AHD, TVI and CVI up to 8MP at 15fps, and CVBS
- 1 SATA interface, taking a hard drive of up to 16 TB
- HDMI output up to 4K (3840 x 2160) at 30 Hz, plus VGA
- 4 alarm inputs and 1 alarm output, with 1 RS485 interface
- 1 RJ45 10 M/100 M/1000 M Ethernet port; DC 12 V/3 A power
Full specification
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Analog Video Input | 16-ch, BNC |
| Max IP Video Input | 24-ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| BNC Audio Input | 16-ch, channel audio |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| BNC Video Output | 1-ch |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25 |
| Playback Screen | 1/4/9/16 |
| Encoding/Decoding | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP Lite@8fps Sub stream: D1@8fps Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@12fps Main stream: 720P@30fp Sub stream: D1@12fps |
| Audio Sample Rate | 8 kHz, 16 bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability | Analog: 16 x 8MP Lite@8, 16 x 5MP Lite@12, 16 x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 2 x 8MP@30, 3 x 5MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 24 x D1@30 |
| Num of Concurrent Playback in Local | 16-ch |
| Coaxial Cable | |
| Audio over Coaxial Cable(Form) | 16-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV) |
| Two-way Audio | |
| Two-way Audio | 1-ch (with IP Camera) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:16-ch snapshot, up to 3840*2160 resolution |
| Network | |
| Incoming Bandwidth | 80Mbps (Up to 112 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection (UMD) , SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection |
| IP Smart by IPC | Face Detection, SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area), Defocus Detection, Object Removed, Object Left Behind, Auto Tracking |
| VCA Search | Face Search, Behavior Search, People Counting Report |
| Smart Functions by XVR | 16-ch (UMD), 4-ch (SIP), 2-ch (Face Detection) |
| Smart Functions by IP Camera | 4-ch (SIP), All channels (up to 4 images/s in total) Face Detection |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 | 1 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| Power Supply | DC 12 V/3 A |
| Working Environment | |
| Working Temperature | -10 °C to 55 °C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 15W |
| Dimensions | |
| Weight (without HDD) | ≤1.1 Kg |
| Dimensions | 260mm ×240mm× 46mm |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
What you will need
Add one of our surveillance hard drives as none is listed; it has 1 SATA bay taking up to 16 TB. It needs a DC 12 V/3 A supply, cable to each analogue camera and a monitor on the HDMI or VGA output. For IP cameras within the IP channel count, add network cable and a PoE switch to power them.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the XVR301-16Q3 with you before you buy — the camera formats you plan to use, the hard drive capacity for one bay and the alarm inputs you need — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
Is a hard drive included with the XVR301-16Q3?
Not as listed, so add one of our surveillance hard drives. It has 1 SATA interface and takes up to 16 TB.
What is the highest camera resolution the XVR301-16Q3 accepts?
On its 16 analogue inputs it lists 8MP at 15fps for AHD, TVI and CVI. For IP cameras, its decoding capability lists 2 x 8MP streams.
Does the XVR301-16Q3 have alarm inputs?
Yes, it lists 4 alarm inputs and 1 alarm output, plus 1 RS485 interface.
How much power does the XVR301-16Q3 use?
It takes DC 12 V/3 A, with power consumption without HDD listed as ≤ 15W.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | XVR301-16Q3 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
