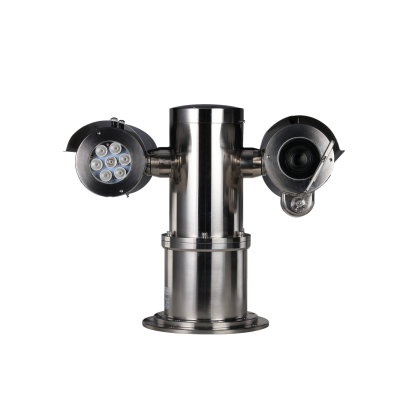

Dahua EPC245U-PTZ-IR - 2MP 1080p 45x Zoom Explosion-Proof Starlight Infrared PTZ IP CCTV Camera

Dahua EPC245U-PTZ-IR: 2MP 1080p 45x Explosion-Proof Starlight IR PTZ IP Camera

The Dahua EPC245U-PTZ-IR is an explosion-proof 2MP PTZ camera for hazardous and corrosive sites. Dahua lists ATEX and IECEx standards (EN and IEC 60079 parts 0, 1, 28 and 31) and a 316L stainless steel housing.

A 1/2.8-inch 2MP sensor and a 3.95-177.7mm lens give 45x optical zoom, from 70.3 degrees wide to 1.8 degrees at full zoom. The main stream runs at 1080p up to 50/60fps, and 7 IR lights reach up to 200m. It pans 360 degrees continuously and tilts from -90 to +90 degrees.

The housing is rated IP68 (1.2m for 45 minutes) and works from -40 to +60 degrees C. It runs on 100-240V AC, 3A, and has a Micro SD slot up to 256GB. At 34.4kg net it needs a mount and fixings rated for the load.

Key features

• 2MP resolution (1920 × 1080) with up to 50/60 fps on the main stream
• 45x optical zoom, 3.95mm to 177.7mm lens (H 70.3° to 1.8°)
• Starlight low-light technology
• 7 IR lights, up to 200m IR distance for night viewing
• Explosion-proof design, ATEX and IECEx standards listed
• 316L stainless steel, anti-corrosion design; IP68 (1.2m / 45 min)
• Pan 0° to 360° endless, tilt -90° to +90°
• Smart H.265+ and H.265 video compression, micro SD card up to 256GB

Technical specification

DORI distances

Detect, observe, recognise and identify distances (EN 62676-4), from Dahua's page. They do not reflect intelligent function distances.

Works with

• DH-PFM900-E-V2 integrated mount tester (Dahua lists the PFM900-E as an accessory for this camera)
• Dahua DHI-NVR4216-EI 16 Channel NVR: a 16 channel Dahua NVR for recording IP cameras
• Dahua DHI-NKB1000-E Network Keyboard: a Dahua keyboard with a 3-axis joystick for PTZ control

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Common questions

Is it ATEX and IECEx certified?

Dahua's page lists ATEX (EN 60079-0, -1, -28 and -31) and IECEx (IEC 60079-0, -1, -28 and -31) standards. Check Dahua's certificates for the exact hazardous area rating your site needs, or contact us.

How is it powered?

Dahua lists a 100 to 240V AC, 3A power supply. No PoE input is listed.

How far can it see at night?

As an infrared camera it has 7 IR lights, and Dahua gives an IR distance of up to 200m.

What does Starlight mean?

Starlight is Dahua's low-light imaging technology. See our Dahua Starlight guide.

How far does the zoom see?

At the tele end Dahua gives DORI distances of 2451.0m to detect, 980.4m to observe, 490.2m to recognise and 245.1m to identify. At the wide end they are 54.5m, 21.8m, 10.9m and 5.4m.

How heavy is it?

Dahua lists a net weight of 34.4kg and a gross weight of 52.0kg, so plan a mount and fixings to suit.

Is the housing corrosion resistant?

Dahua lists a 316L stainless steel, anti-corrosion design and IP68 (1.2m / 45 min). This standard model has basic anti-corrosion protection; professional protection is only on the -C5-H model.

Can it record to a memory card?

Yes. Dahua lists a Micro SD card slot up to 256GB.

What frame rate does it record at?

The main stream runs 1080p, 1.3MP or 720p at up to 50/60fps. Sub stream 1 runs D1 or CIF and sub stream 2 runs up to 1080p, both at up to 25/30fps.

What are its pan and tilt ranges?

Pan is 0 to 360 degrees endless, and tilt is -90 to +90 degrees.

Full manufacturer specification: Dahua product page

Download the Dahua DH-EPC245U-PTZ-IR datasheet (PDF).
