Dahua DH-HAC-HDW2501TP-A-S2-BLACK - 5MP Starlight HDCVI Infrared Eyeball Turret CCTV Camera, 50m Night Vision, 120dB WDR, Mic, IP67, Black
Product Features
- Dahua DH-HAC-HDW2501TP-A-S2-BLACK is a 5MP Starlight HDCVI eyeball turret CCTV camera in black.
- 0.005 lux low light; IR up to 50m.
- 120dB WDR and 2D/3D noise reduction.
- Built-in mic plus 1 audio input.
- IP67 aluminium casing, 12V DC.
Dahua DH-HAC-HDW2501TP-A-S2-BLACK — 5MP Starlight HDCVI IR Eyeball Turret Camera, Black

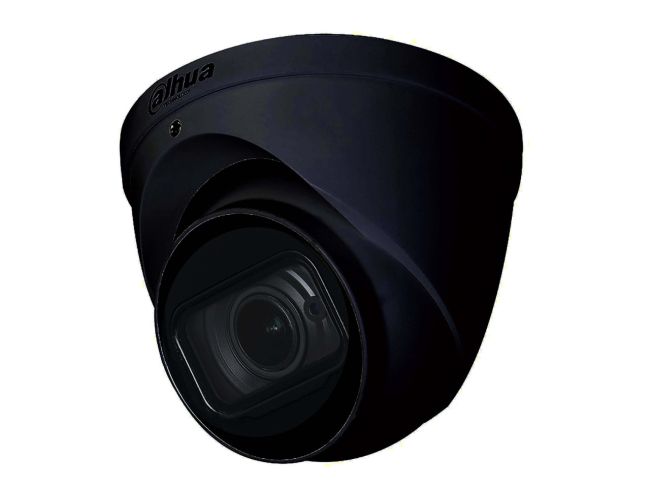

The Dahua DH-HAC-HDW2501TP-A-S2-BLACK (also written HAC-HDW2501TP-A-S2-BLACK) is the black version of the HAC-HDW2501T-A: a 5MP Starlight HDCVI eyeball turret camera with 120dB WDR, IR night vision up to 50m, a built-in microphone plus an audio input, and an IP67 aluminium casing.
Key features
- 5MP (2592 × 1944) 1/2.8" CMOS; 20 fps at 5MP, 25/30 fps at 4MP and 1080P.
- Starlight: 0.005 lux at F1.6; IR up to 50m from 2 IR LEDs.
- 120dB WDR, BLC, HLC, 2D/3D NR.
- Built-in mic and 1 audio input.
- IP67 aluminium casing, -40 °C to +60 °C, 12V DC.
Technical specification
| Model | DH-HAC-HDW2501TP-A-S2-BLACK (black PAL -S2 version of the datasheet model HAC-HDW2501T-A) |
|---|---|
| Image sensor | 1/2.8" CMOS, progressive |
| Max. resolution | 5MP, 2592 × 1944 |
| Frame rate | 20 fps @ 5MP; 25/30 fps @ 4MP; 25/30 fps @ 1080P |
| Video output | 1-channel BNC HD / CVBS (DIP switch) |
| Min. illumination | 0.005 lux at F1.6 (30IRE); 0 lux IR on |
| Lens | Fixed, F1.6; 3.6 mm (2.8 mm, 6 mm optional) — contact us for a specific lens |
| Field of view | H: 79° (3.6 mm); 98° (2.8 mm); 49.5° (6 mm) |
| IR | Up to 50 m, 2 IR LEDs, Smart IR |
| Day/night | Auto (ICR) / manual |
| Image functions | 120dB WDR, BLC, HLC, AGC, 2D/3D NR |
| Audio | 1 channel in and built-in mic |
| Power | 12V DC ±30%; max 7 W (IR on) |
| Operating temperature | -40 °C to +60 °C; less than 90% RH |
| Protection | IP67; aluminium casing |
| Dimensions | Ø106 mm × 99.2 mm |
| Weight | 0.48 kg net; 0.63 kg gross |
| Certifications | CE, FCC, UL |
Works with
- An HDCVI recorder supporting 5MP input. See our range of DVRs and XVRs.
- A 12V DC power supply.
- The white version (DH-HAC-HDW2501TP-A-S2).
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
What is Starlight?
Dahua's low light imaging; this camera is rated to 0.005 lux. See our Starlight guide.
Does it record audio?
Yes: built-in mic and one audio input.
Which lens does it have?
Dahua lists 3.6 mm as standard with 2.8 mm and 6 mm optional. Contact us for a specific lens.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HDW2501TP-A-S2-BLACK |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Colour | Black |
| Max Resolution | 5MP |
| Lens Type | Fixed |
| WDR | 120dB WDR |
| Noise Reduction | 2D/3D NR |
| Video Output | HDCVI/CVBS switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | DC12V |
| Dimensions | Ø106mm x 99.2mm |
