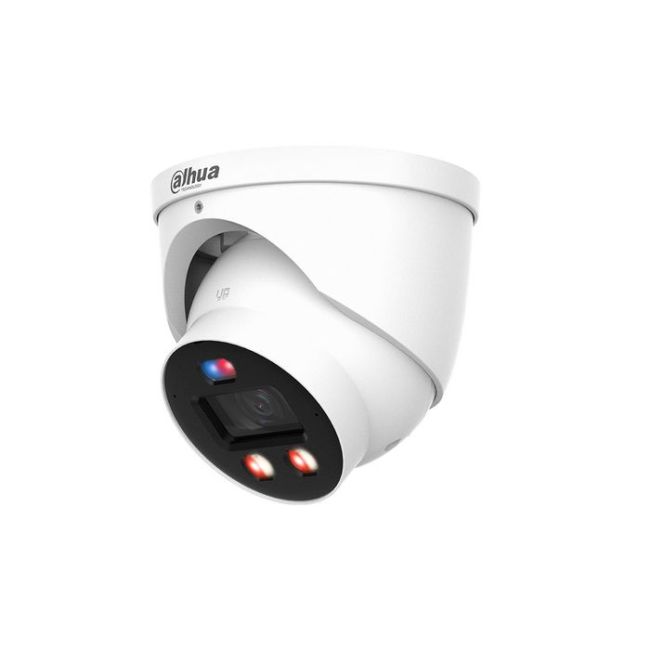

Dahua DH-IPC-HDW3849HP-AS-PV-0360B-PRO - 8MP 4K WizColor TiOC PRO AI Eyeball IP CCTV Camera

Dahua DH-IPC-HDW3849HP-AS-PV-0360B-PRO - 8MP 4K WizColor TiOC PRO AI Eyeball Turret IP CCTV Camera

The Dahua DH-IPC-HDW3849HP-AS-PV-0360B-PRO is an 8MP 4K eyeball (turret) IP camera from Dahua's WizSense 3 TiOC PRO range with WizColor. A 1/1.8 inch sensor and an F1.0 lens record 3840 x 2160 at up to 25/30fps, and the 3.6mm fixed lens gives a 93 degree horizontal field of view.

Two multi-core lights give IR and warm light up to 40m. SMD 4.0 and perimeter protection (intrusion and tripwire with human and vehicle classification, plus stay and loitering detection) work alongside a sound and light alarm with red and blue lights, and a built-in dual microphone and speaker support two-way talk.

Recording can go to a Micro SD card of up to 512GB, to NAS or to a recorder over ONVIF Profile S, G and T, and AcuPick works with Dahua back-end devices. Power is PoE (802.3af) or 12V DC, with a maximum of 10W on PoE. The metal housing is IP67 rated, works from -40 to +60 degrees C and has 130dB WDR.

Also listed as IPC-HDW3849HP-AS-PV-0360B-PRO. It is the 3.6 mm version of the Dahua DH-IPC-HDW3849HP-AS-PV-PRO; the 2.8 mm versions are the DH-IPC-HDW3849HP-AS-PV-0280B-PRO and the grey DH-IPC-HDW3849HP-AS-PV-0280B-PRO-Grey.

Key features

• 8MP (3840 × 2160, 4K) at 25/30 fps from a 1/1.8" CMOS sensor with an F1.0 large aperture lens (Starlight technology).
• WizColor: AI-ISP, a large pixel size sensor and a large aperture capture vivid full-colour images at night from weak light such as moonlight and city lights.
• Infrared night vision camera with built-in multi-core light: IR and warm light each reach up to 40 m with the 3.6 mm lens.
• Active deterrence: sound and light alarm with red and blue lights; one-tap arming and disarming.
• Two-way talk through the built-in dual microphone and a 1-channel speaker.
• SMD 4.0, AcuPick target search (with back-end devices) and AI SSA; intrusion and tripwire classify humans and vehicles; stay detection, loitering detection and face detection (full image).
• 130 dB WDR, 3D NR, HLC and BLC; Super AI Coding (H.265/H.264) saves bandwidth and storage.
• microSD slot up to 512 GB; 1 alarm input and output, 1 audio input and output.
• IP67 protection (dust-tight and protected against temporary immersion in water) for outdoor use; 12 VDC (±30%) or PoE (802.3af).

Technical specification

How far it can see (Dahua DORI figures)

Dahua datasheet figures for the 3.6 mm lens (EN 62676-4). They do not reflect intelligent function distances.

Works with

• Dahua DH-PFB220C ceiling mount bracket
• Dahua DH-PFA106 mount adapter
• Dahua PFB305W wall mount bracket
• Dahua DH-PFB2203W wall mount bracket
• Dahua DH-PFA151 corner mount bracket
• Dahua PFA150 pole mount bracket
• Dahua DH-PFA130-E junction box
• Dahua DH-PFM900-E-V2 integrated mount tester
• Dahua DHI-NVR4208-8P-EI 8 Channel PoE NVR: a Dahua NVR with 8 PoE ports to power and record the camera
• Dahua DH-CS4010-8GT-110 10-Port Cloud Managed PoE Switch: ports 2 to 8 give up to 30 W each and port 1 up to 90 W, more than the 10 W this camera draws at most on PoE

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Common questions

Is it a waterproof outdoor security camera?

Yes. Its IP67 housing is dust-tight and protected against temporary immersion in water, so it can be mounted outdoors.

Is it an infrared camera?

Yes. It has built-in IR and warm light for night recording, and WizColor adds full-colour night images.

Is it a motion detection camera?

Yes. SMD 4.0 smart motion detection, with intrusion and tripwire rules, classifies humans and vehicles.

What does TiOC PRO mean?

Dahua lists this camera in its TiOC range, and its page for this model is titled 8MP WizColor TiOC PRO Eyeball Camera. The datasheet lists a sound and light alarm with red and blue lights for active deterrence. See our TiOC guide.

What does WizColor do?

Dahua WizColor combines AI-ISP, a large pixel size sensor and a large aperture to capture vivid colour images at night, using weak light such as moonlight and city lights, while keeping detail and limiting motion blur.

Is it a 4K camera?

Yes. It is an 8MP camera with a maximum 3840 × 2160 image, which is 4K.

What does the 3.6 mm lens give me?

A horizontal field of view of 93° (H 93°, V 50°, D 111°), IR and warm light up to 40 m, and a DORI detect distance of 100.0 m.

Is it a Starlight camera?

Dahua says its Starlight technology and large aperture lens let the camera produce clear, vivid images in poor lighting. See our Starlight guide.

Does it need a separate power supply?

It runs on 12 VDC (±30%) or PoE (802.3af), using up to 10 W on PoE. A PoE switch can power it over the network cable.

Will it work with a recorder that is not Dahua?

It supports ONVIF Profile S, G and T, so it can be added to compatible third-party recorders. Smart Search and AcuPick work together with Dahua back-end devices. See our NVRs.

Does it have a memory card slot?

Yes. It takes a Micro SD card of up to 512GB, and it can also record to NAS or send files by FTP or SFTP.

Can I talk to people through the camera?

Yes. It has a built-in dual microphone and a 1-channel speaker for two-way talk, plus 1 audio input and 1 audio output.

Can the deterrence be armed and disarmed?

Yes. Dahua lists one-tap arming and disarming. The active deterrence is a sound and light alarm with red and blue lights.
