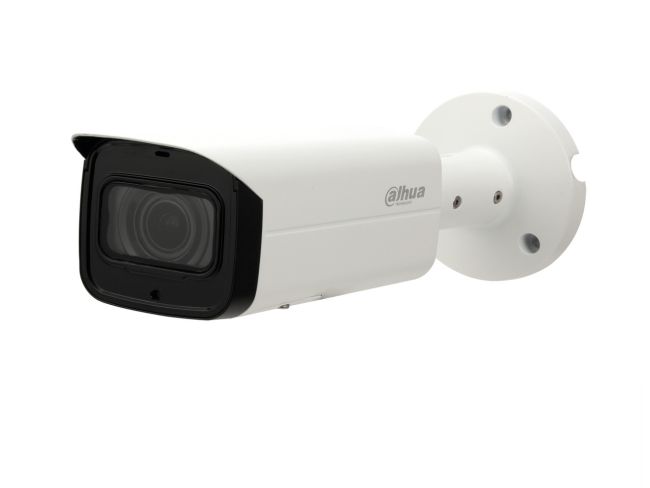

Dahua DH-IPC-HFW4239TP-ASE - 2MP Full-Colour Starlight Bullet IP CCTV Camera, F1.0 Lens, 120dB WDR, PoE, IP67 IK10
Product Features
- Dahua DH-IPC-HFW4239TP-ASE is a 2MP 1080p full-colour starlight bullet IP CCTV camera.
- F1.0 lens and 0.001 lux colour sensitivity for colour images in low light.
- Tripwire, intrusion, abandoned/missing object and face detection.
- 120 dB WDR, H.265+ and H.264+.
- 12 VDC or PoE, IP67 and IK10, Micro SD up to 128 GB.
Dahua DH-IPC-HFW4239TP-ASE — 2MP Full-Colour Starlight Bullet IP CCTV Camera
The Dahua DH-IPC-HFW4239TP-ASE (also written IPC-HFW4239TP-ASE) is the PAL version of Dahua's IPC-HFW4239T-ASE, a 2MP 1080p full-colour starlight bullet IP CCTV camera. Its F1.0 lens and sensitive sensor keep images in colour in low light without IR, and it adds 120 dB WDR, IVS analytics and face detection in an IP67 and IK10 metal housing.
Key features
- 1/2.8" 2MP progressive scan CMOS, 1080p at 1-25/30 fps, 3 streams.
- Full colour in low light: F1.0 aperture, 0.001 lux colour (1/3 s); no IR illuminator.
- IVS: tripwire, intrusion, object abandoned/missing; face detection.
- 120 dB WDR, BLC, HLC, 3D DNR, 16x digital zoom.
- H.265, H.264, H.265+ and H.264+.
- 1 audio in/out; 1 alarm in/out; Micro SD up to 128 GB.
- 12 VDC or PoE (802.3af); IP67; IK10.
Technical specification
| Model | DH-IPC-HFW4239TP-ASE (PAL version of the datasheet model IPC-HFW4239T-ASE) |
|---|---|
| Image sensor | 1/2.8" 2MP progressive scan CMOS |
| Effective pixels | 1920 × 1080 |
| Frame rate | Main stream 1080p at 1-25/30 fps |
| Lens | Fixed, F1.0; 3.6 mm (6 mm optional) (contact us for a specific lens) |
| Angle of view | H 87° / 54°; V 47° / 20° (3.6 mm / 6 mm) |
| Minimum illumination | 0.001 lux at F1.0 (colour, 1/3 s, 30 IRE); 0.006 lux at F1.0 (colour, 1/30 s, 30 IRE) |
| IR | None |
| Day/night | Colour (default) / Auto (electronic) / B/W |
| WDR | BLC / HLC / WDR (120 dB) |
| Video compression | H.265, H.264, H.264B, H.264H, MJPEG (sub stream); H.265+ and H.264+ |
| Intelligence | Tripwire, intrusion, object abandoned/missing; face detection |
| Audio | 1 in / 1 out; G.711a, G.711Mu, AAC, G.726 |
| Alarm | 1 in (5 mA 5 VDC); 1 out (300 mA 12 VDC) |
| Storage | Micro SD up to 128 GB; NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S and G |
| Power | 12 VDC; PoE (802.3af) (Class 0); under 4 W |
| Protection | IP67; IK10 |
| Operating conditions | -30 °C to +60 °C; less than 95% RH |
| Casing and size | Metal; 244.1 mm × 79 mm × 75.9 mm; net weight 0.815 kg |
Works with
- Dahua DH-PFA152-E pole mount bracket
- Dahua DH-PFM900-E-V2 integrated mount tester
- The dome version (DH-IPC-HDBW4239RP-ASE)
Common questions
Does it have IR night vision?
No. Dahua lists no IR LEDs. It uses an F1.0 lens and 0.001 lux colour sensitivity to keep images in colour in low light. See our Starlight guide.
Which lens does it have?
Dahua lists 3.6 mm with 6 mm optional. Contact us for a specific lens.
Is it waterproof and vandal resistant?
Yes. IP67 and IK10, operating from -30 °C to +60 °C.
What smart functions does it support?
Tripwire, intrusion, object abandoned/missing and face detection.
How is it powered?
12 VDC or PoE (802.3af), under 4 W. It supports ONVIF Profile S and G.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HFW4239TP-ASE |
|---|---|
| Manufacturer | Dahua |
| Protection Level | IP67, IK10 |
| Power Supply | 12V DC, PoE |
| Built-in Mic | No |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 2MP |
| Lens Type | Fixed |
