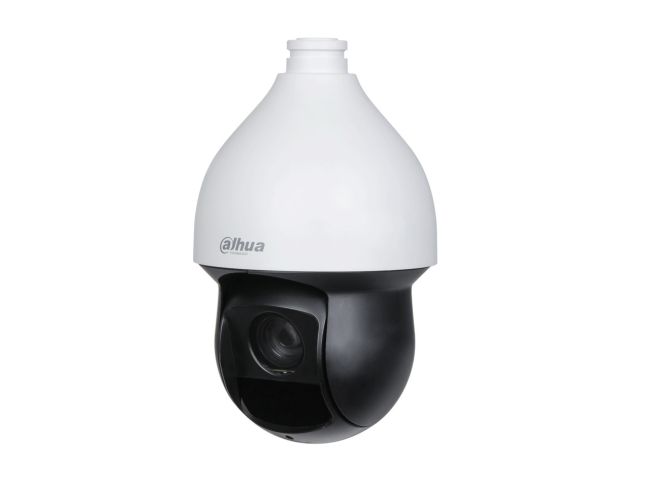

Dahua DH-SD59225DB-HC - 2MP 1080p Starlight IR HDCVI PTZ CCTV Camera, 25x Optical Zoom, 150m Infrared Night Vision, IP66 Waterproof
Product Features
- Dahua DH-SD59225DB-HC is a 2MP 1080p Starlight HDCVI outdoor PTZ CCTV camera.
- 25x optical zoom, 4.8-120mm lens.
- IR night vision up to 150m from 4 IR illuminators.
- 120dB WDR; endless 360° pan, 300 presets.
- IP66, 24V DC 2.5A.
Dahua DH-SD59225DB-HC — 2MP 25x Starlight IR HDCVI PTZ Camera
The Dahua DH-SD59225DB-HC (also written SD59225DB-HC) is a 2MP 1080p Starlight HDCVI PTZ camera from Dahua's SD5 series, with a 25x optical zoom lens, IR night vision up to 150m, 120dB WDR and an IP66 body. Video and PTZ control run over coax to a compatible Dahua XVR. It is powered from 24V DC.
Key features
- 2MP (1920 × 1080) 1/2.8" CMOS; 1080p at 25/30 fps.
- 25x optical zoom, 4.8-120 mm, F1.6-F3.5; 16x digital zoom.
- Starlight: 0.005 lux colour, 0.0005 lux B/W; IR up to 150 m.
- Pan 360° endless, tilt -15° to +90° with auto flip; 300 presets, 8 tours, 5 patterns, 5 scans.
- 120dB WDR, BLC, HLC, 2D/3D NR, electronic defog.
- 2 alarm inputs, 1 alarm output, 1 audio input; IP66 and TVS 6000V.
Technical specification
| Model | DH-SD59225DB-HC |
|---|---|
| Image sensor | 1/2.8" CMOS, 2MP |
| Max. resolution | 1920 × 1080; 1080p 25/30 fps, 720p 25/30/50/60 fps |
| Lens | 4.8-120 mm, F1.6-F3.5, 25x optical, 16x digital |
| Field of view | H: 60.6°-3.2°; V: 34.1°-1.8°; D: 69.4°-3.7° |
| Min. illumination | 0.005 lux colour; 0.0005 lux B/W (F1.6); 0 lux IR on |
| IR | Up to 150 m, 4 IR illuminators, Zoom Prio or manual |
| Pan / tilt | Pan 0°-360° endless; tilt -15° to +90°, auto flip 180°; preset speed pan 400°/s, tilt 300°/s |
| Presets / tours | 300 presets; 8 tours; 5 patterns; 5 scans |
| PTZ protocol | DH-SD, Pelco-P/D (auto recognition); RS-485 |
| Video output | TVI; CVI; AHD; CVBS (debugging only); 1 BNC |
| Ports | 1 audio in; 2 alarm in; 1 alarm out |
| Image functions | 120dB WDR, BLC, HLC, 2D/3D NR, defog, privacy masking |
| Power | 24 VDC 2.5 A ±25%; basic 10 W, max 21 W |
| Operating temperature | -40 °C to +70 °C; ≤95% RH |
| Protection | IP66; TVS 6000V lightning, surge and voltage transient protection |
| Dimensions | 310.0 mm × Ø185.7 mm |
| Weight | 3.9 kg net; 7.2 kg gross |
| Certifications | CE, FCC, UL |
Works with
- A Dahua XVR with HDCVI input. See our range of DVRs and XVRs.
- A 24V DC 2.5A power supply.
- The Dahua DH-SD49225DB-HC is the smaller 25x HDCVI PTZ with 100m IR.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
How far can it see at night?
IR reaches up to 150 m, and Starlight gives colour down to 0.005 lux. See our Starlight guide.
How is it powered?
24 VDC 2.5 A; up to 21 W with PTZ and IR running.
Can it be used outdoors?
Yes: IP66 with TVS 6000V protection, -40 °C to +70 °C.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-SD59225DB-HC |
|---|---|
| Manufacturer | Dahua |
| Protection Level | IP66 |
| Power Supply | 24V DC |
| Product Type | PTZ Camera |
| Colour | White |
| Max Resolution | 2MP |
| Lens Type | Motorized Zoom |
| Operating Temperature | -40°C to +70°C |
| Power | 24VDC, 2.5A |
| Dimensions | 310.0mm x Ø185.7mm |
