Grandstream GRP2613 - 6-Line Gigabit PoE IP Phone, VoIP SIP Desk Phone with Colour Screen
Product Features
The Grandstream GRP2613 is a 6-line IP phone for SIP and VoIP systems, with a 2.8 inch colour screen, HD handset and speakerphone, dual Gigabit ports with integrated PoE and up to 4 SIP accounts. A power adapter is included. Check before ordering: this is the Ethernet-only GRP2613, not the GRP2613W Wi-Fi model.

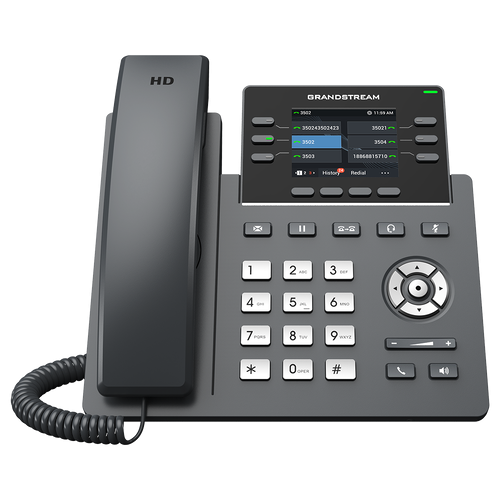

GRP2613 - 6-Line Gigabit PoE IP Phone
The Grandstream GRP2613 is a 6-line IP phone (also called a VoIP phone or SIP phone) for office and business desks, as a business phone or office phone on a SIP system. It has a 2.8 inch colour screen, HD handset and speakerphone, dual Gigabit Ethernet ports with integrated PoE, and support for up to 4 SIP accounts.
What the GRP2613 is for
The GRP2613 is a desk phone for staff who use a SIP-based phone system or hosted VoIP service. Grandstream describes it as built for desktop workers and for easy deployment by enterprises and service providers, with zero-touch provisioning for mass deployment. For cloud provisioning and central management it is supported by Grandstream's Device Management System (GDMS). Browse more IP desk phones or other Grandstream products.
Key features
- 6 line keys with up to 4 SIP accounts, and up to 24 digital BLF keys
- 2.8 inch (320x240) TFT colour LCD with a swappable face plate for logo customisation
- HD handset and speakerphone with wideband audio, including G.722 and Opus codecs
- Dual switched 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE (802.3af)
- Noise shield technology to minimise background noise
- Secure boot, dual firmware images and encrypted data storage
- 5-way conference, call park, call pickup, hot-desking and shared-call-appearance
- RJ9 headset jack, with EHS support for Plantronics headsets
- Base stand with 2 angle positions; wall mountable (wall mount sold separately)
Full specification
| General | |
| Manufacturer part number (MPN) | GRP2613 |
| Type | 6-line carrier-grade IP phone |
| SIP accounts | Up to 4 (GRP2613) |
| Line keys | 6 line keys; up to 24 digital BLF keys / virtual multi-purpose keys |
| Display and keys | |
| Display | 2.8 inch (320x240) TFT colour LCD |
| Keys | 4 XML programmable context-sensitive softkeys, 5 navigation/menu keys and 11 dedicated function keys (message with LED indicator, phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone, volume up, volume down) |
| Headset | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| Audio | |
| Handset and speakerphone | HD handset and speakerphone with support for wideband audio |
| Codecs | G.729A/B, G.711 µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, Opus; in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Network | |
| Ethernet | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Protocols and standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Telephony features | |
| Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 1000 items), call waiting, call log (up to 2000 records), XML customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalised music ringtones and music on hold, server redundancy and fail-over |
| Security and management | |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot; dual firmware images and encrypted data storage |
| Provisioning | Firmware upgrade via FTP/TFTP/TFTPS/HTTP/HTTPS; mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file |
| Languages | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more |
| Power | |
| Power | Universal power adapter included (input 100-240V; output +5V, 0.6A); integrated Power-over-Ethernet (802.3af); IEEE 802.3az Energy-Efficient Ethernet |
| Maximum power consumption | 3W (power adapter) or 3.8W (PoE) |
| Physical | |
| Stand and mounting | Base stand with 2 angle positions; wall mountable (wall mount sold separately) |
| Dimensions | 203mm x 193mm x 52.1mm |
| Unit weight | 554g |
| Package weight | 936g |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -10°C to 60°C |
| Humidity | 10% to 90% non-condensing |
| In the box | GRP2613 phone, handset with cord, phone stand, 5V power adapter, network cable, Quick Installation Guide, GPL license |
What you will need
You will need a SIP-based phone system or VoIP service to register the phone to. Power comes from a PoE (802.3af) switch or from the included power adapter. The wall mount is sold separately. Grandstream also lists a Wi-Fi model, the GRP2613W, which is a different part; this listing is for the GRP2613 (MPN GRP2613). If you are unsure whether it works with your phone system, call us before ordering.
Buying from Zenith Security Co.
Zenith Security Co is a UK supplier, not an installer, and we will go through the product with you before you buy. Our trade counter is in Wolverhampton, and we have been operating since 2012.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Does the GRP2613 support PoE?
Yes. Grandstream lists integrated Power-over-Ethernet (802.3af), and a power adapter is included if you do not have a PoE switch.
How many SIP accounts does it support?
Grandstream states up to 4 SIP accounts on the GRP2613 (the GRP2613W Wi-Fi model supports 6), with 6 line keys.
Does it have Wi-Fi or Bluetooth?
No. Grandstream lists integrated Wi-Fi and Bluetooth for the GRP2613W only. The GRP2613 connects by Ethernet.
Do you offer trade accounts?
Trade accounts are available. See our trade customer page.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
| Product Code | GRP2613 |
|---|---|
| Manufacturer | Grandstream |
| Colour | Brown |
| Product Type | IP desk phone |
