UNIVIEW - IPC2328SB-DZK-I0 - 8MP HD Intelligent IR Motorised Varifocal Bullet Network Camera, 2.8-12mm

IPC2328SB-DZK-I0 — 8MP HD Intelligent IR Motorised Varifocal Bullet Network Camera, 2.8-12mm

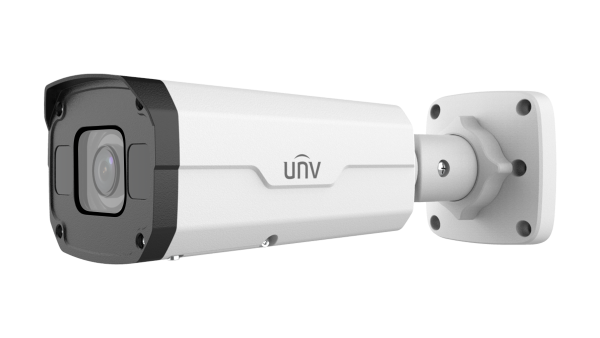

The Uniview IPC2328SB-DZK-I0 is an 8MP bullet network camera with a motorised 2.8 to 12 mm lens.

What the IPC2328SB-DZK-I0 is for

The lens gives a horizontal field of view of 107.4° to 29.2°. Uniview's DORI figures are 86.9 m to 372.4 m to detect and 8.7 m to 37.2 m to identify. For low light it has infrared to 50 m. It is rated IP67 and IK10 for outdoor use (working range -30 °C to 60 °C).

The datasheet lists smart intrusion prevention: cross line detection, intrusion detection, enter area detection, leave area detection, with false alarm filtering.

Key features

• 8MP maximum resolution, 1/2.8" CMOS sensor, 120 dB WDR
• Motorised lens, 2.8 to 12 mm, F1.6 iris
• Horizontal field of view 107.4° to 29.2°
• Infrared to 50 m
• IP67 IK10, PoE (802.3af) or 12 V DC, microSD, up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 10.5 W. Use a network cable for the run. For recording, add a compatible NVR with hard drives, or a microSD card (up to 512 GB). Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC2328SB-DZK-I0 with you before you buy — the 2.8 to 12 mm lens, coverage, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What lens does the IPC2328SB-DZK-I0 have?

A motorised 2.8 to 12 mm lens, with a horizontal field of view of 107.4° to 29.2°.

How far can the IPC2328SB-DZK-I0 see?

Uniview's DORI figures are 86.9 m to 372.4 m to detect and 8.7 m to 37.2 m to identify.

Is the IPC2328SB-DZK-I0 PoE?

Yes, it takes DC 12 V ±25%, PoE (IEEE 802.3af), with maximum consumption of 10.5 W.

Does the IPC2328SB-DZK-I0 have night lighting?

Yes: infrared to 50 m.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
