UNIVIEW - IPC314SB-ADF28K-I0 - 4MP HD Intelligent IR Fixed Mini Dome Network Camera, 2.8mm
Product Features
4MP mini dome network camera with a fixed 2.8 mm lens, infrared to 30 m. Powered by PoE (802.3af) or 12 V DC. Recorder and microSD card are not included.
IPC314SB-ADF28K-I0 — 4MP HD Intelligent IR Fixed Mini Dome Network Camera, 2.8mm

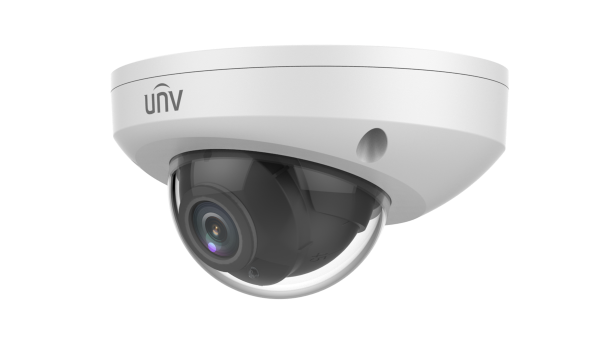

The Uniview IPC314SB-ADF28K-I0 is a 4MP mini dome network camera with a fixed 2.8 mm lens.
What the IPC314SB-ADF28K-I0 is for
The lens gives a horizontal field of view of 101.1°. Uniview's DORI figures are 63.0 m to detect and 6.3 m to identify. For low light it has infrared to 30 m. It is rated IP67 and IK10 for outdoor use (working range -30 °C to 60 °C).
The datasheet lists smart intrusion prevention: cross line detection, intrusion detection, enter area detection, leave area detection, with false alarm filtering.
Key features
- 4MP maximum resolution, 1/3.0" CMOS sensor, 120 dB WDR
- Fixed lens, 2.8 mm, F1.6 iris
- Horizontal field of view 101.1°
- Infrared to 30 m
- Built-in microphone
- IP67 IK10, PoE (802.3af) or 12 V DC, microSD, up to 512 GB
Full specification
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000s |
| Adjustment Angle | Pan: 0° to 90°, Tilt: 0° to 68°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 101.1° |
| Field of View (V) | 55.3° |
| Field of View (D) | 111.1° |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Detect) | 63.0 m |
| DORI Distance (Observe) | 25.2 m |
| DORI Distance (Recognize) | 12.6 m |
| DORI Distance (Identify) | 6.3 m |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Image | |
| Smart IR | Support |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Audio | |
| Two-way Audio | Support |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Built-in Mic | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| General | |
| Protection | IP67 (IEC 60529); IK10 (IEC 62262) |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 6.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø110 mm × 61 mm (Ø × H) |
| Weight | 0.37 kg |
| Material | Metal |
| Working Environment | -30 °C to 60 °C, Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
What you will need
Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 6.0 W. Use a network cable for the run. For recording, add a compatible NVR with hard drives, or a microSD card (up to 512 GB). Neither is supplied.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the IPC314SB-ADF28K-I0 with you before you buy — the 2.8 mm lens, coverage, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
What lens does the IPC314SB-ADF28K-I0 have?
A fixed 2.8 mm lens, with a horizontal field of view of 101.1°.
How far can the IPC314SB-ADF28K-I0 see?
Uniview's DORI figures are 63.0 m to detect and 6.3 m to identify.
Is the IPC314SB-ADF28K-I0 PoE?
Yes, it takes DC 12 V ±25%, PoE (IEEE 802.3af), with maximum consumption of 6.0 W.
Does the IPC314SB-ADF28K-I0 have night lighting?
Yes: infrared to 30 m.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | IPC314SB-ADF28K-I0 |
|---|---|
| Manufacturer | Uniview |
| Colour | White |
| Max Resolution | 4MP |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR |
| WDR | 120 dB |
| Lens Type | Fixed |
| Max. IR Range | Up to 30 m |
| Protection Level, Ingress Protection | IP67 IK10 |
| Operating Temperature | -30 °C to 60 °C |
| Local Storage | MicroSD, up to 512 GB |
| Indoor/Outdoor | Indoor / Outdoor |
