UNIVIEW - IPC3614SB-ADF28KM-I0 - 4MP HD Intelligent IR Fixed Eyeball Network Camera, 2.8mm

IPC3614SB-ADF28KM-I0 — 4MP HD Intelligent IR Fixed Eyeball Network Camera, 2.8mm

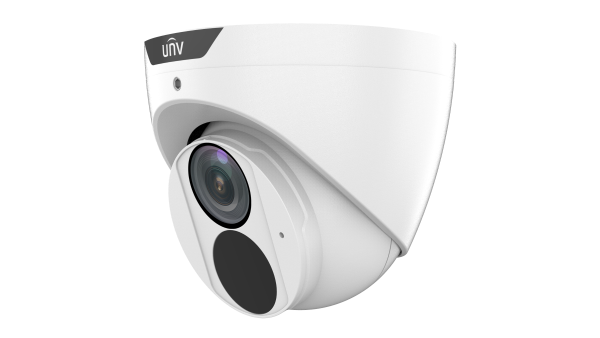

The Uniview IPC3614SB-ADF28KM-I0 is a 4MP eyeball network camera with a fixed 2.8 mm lens.

What the IPC3614SB-ADF28KM-I0 is for

The lens gives a horizontal field of view of 101.1°. Uniview's DORI figures are 63.0 m to detect and 6.3 m to identify. For low light it has infrared to 30 m, and the datasheet lists LightHunter low-illumination performance. It is rated IP67 for outdoor use (working range -30°C to 60°C).

The datasheet lists smart intrusion prevention: cross line detection, intrusion detection, enter area detection, leave area detection, with false alarm filtering.

Key features

• 4MP maximum resolution, 1/3.0" CMOS sensor, 120 dB WDR
• Fixed lens, 2.8 mm, F1.6 iris
• Horizontal field of view 101.1°
• Infrared to 30 m
• Built-in microphone
• IP67, PoE (802.3af) or 12 V DC, microSD, up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 4.0 W. Use a network cable for the run. For recording, add a compatible NVR with hard drives, or a microSD card (up to 512 GB). Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC3614SB-ADF28KM-I0 with you before you buy — the 2.8 mm lens, coverage, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What lens does the IPC3614SB-ADF28KM-I0 have?

A fixed 2.8 mm lens, with a horizontal field of view of 101.1°.

How far can the IPC3614SB-ADF28KM-I0 see?

Uniview's DORI figures are 63.0 m to detect and 6.3 m to identify.

Is the IPC3614SB-ADF28KM-I0 PoE?

Yes, it takes DC 12 V ±25%, PoE (IEEE 802.3af), with maximum consumption of 4.0 W.

Does the IPC3614SB-ADF28KM-I0 have night lighting?

Yes: infrared to 30 m.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
