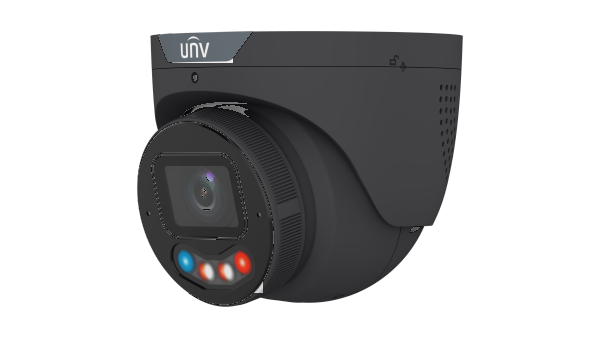

UNIVIEW - IPC3634SE-ADZKMC-WP-I1-BLACK - 4MP Tri-Guard Dual-light Turret Network Camera, 2.8 to 12mm Motorised Lens, Black

IPC3634SE-ADZKMC-WP-I1-BLACK — 4MP Tri-Guard Dual-light Turret Network Camera, 2.8 to 12mm Motorised Lens, Black

The Uniview IPC3634SE-ADZKMC-WP-I1-BLACK is the black-housing version of the IPC3634SE-ADZKMC-WP-I1, a 4MP turret network camera with a motorised lens running from 2.8 to 12 mm, so the view can be set to suit the scene rather than being fixed at one focal length.

What the IPC3634SE-ADZKMC-WP-I1-BLACK is for

The lens range gives a horizontal field of view from 113.5° at 2.8 mm down to 54.6° at 12 mm. Uniview's DORI distances run from 43.4 m to 186.2 m to detect and from 4.3 m to 18.6 m to identify, wide to tele. That range helps where the working distance is not known exactly.

It has dual light, 850 nm infrared and warm light, each to 30 m, plus Smart IR, and is rated IP67 and IK10 for outdoor use (working range -40 to 60 degrees C). Minimum illumination is 0.0005 lux in colour at F1.2. The black finish suits dark fascias and soffits where a white camera would stand out.

Tri-Guard appears in the datasheet title. The rows list line crossing, intrusion, area enter and leave detection, with false alarm filtering and classification of human, non-motor vehicle and vehicle.

Key features

• 4MP maximum resolution, 1/1.8" CMOS sensor, 130 dB WDR
• Motorised lens, 2.8 to 12 mm, F1.2 iris
• Horizontal view from 113.5° to 54.6° across the lens range
• Dual light: IR and warm light to 30 m, with Smart IR
• Built-in dual microphone, speaker and two-way audio support
• IP67, IK10, PoE (802.3af) or 12 V DC, microSD up to 512 GB
• Black housing

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC through the Ø5.5 mm coaxial plug; maximum draw is 5.0 W. Use a network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC3634SE-ADZKMC-WP-I1-BLACK with you before you buy and, depending on your requirements and your area, we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the IPC3634SE-ADZKMC-WP-I1-BLACK the same camera as the white version?

Yes. It shares the specification of the IPC3634SE-ADZKMC-WP-I1; only the housing colour differs.

What focal length does the IPC3634SE-ADZKMC-WP-I1-BLACK have?

A motorised lens covering 2.8 to 12 mm, with a horizontal field of view of 113.5° to 54.6°.

Is the IPC3634SE-ADZKMC-WP-I1-BLACK PoE?

Yes, it takes PoE (IEEE 802.3af) or DC 12 V ±25%, with maximum consumption of 5.0 W.
