UNIVIEW - IPC3635SB-ADZK-I0 - 5MP HD Intelligent IR VF Turret Network Camera, 2.7 to 13.5mm Motorised Lens

IPC3635SB-ADZK-I0 — 5MP HD Intelligent IR VF Turret Network Camera, 2.7 to 13.5mm Motorised Lens

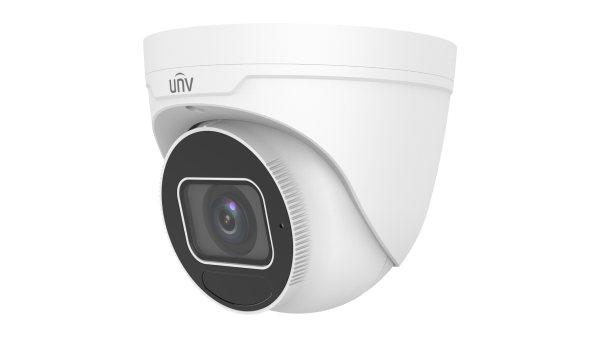

The Uniview IPC3635SB-ADZK-I0 is a 5MP turret camera with a motorised 2.7 to 13.5 mm lens, so the view can be set to suit the scene.

What the IPC3635SB-ADZK-I0 is for

The lens gives a horizontal field of view of 106.3° to 32.5°. Uniview's DORI figures are 60.8 m to 303.8 m to detect and 6.1 m to 30.4 m to identify. Supplementary lighting: infrared to 40 m. Minimum illumination is Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR.

It is rated IP67 (IEC 60529) IK10 (IEC 62262) with a working range of -30 °C to 60 °C. Smart intrusion prevention covers cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle).

Key features

• 5MP maximum resolution, 1/2.7" CMOS sensor, 120 dB WDR
• Motorised lens, 2.7 to 13.5 mm, F1.2
• Horizontal field of view 106.3° to 32.5°
• Illumination: infrared to 40 m
• Power: DC 12 V±25%, PoE (IEEE 802.3af); Max. 7.0 W
• Edge storage: MicroSD, up to 512 GB
• Protection: IP67 (IEC 60529) IK10 (IEC 62262)

Full specification

What you will need

Power the camera from a PoE switch or NVR PoE port (IEEE 802.3af), or from a 12 V DC supply; maximum consumption is 7.0 W. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (up to 512 GB). None of these are supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC3635SB-ADZK-I0 with you before you buy — the lens and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What lens does the IPC3635SB-ADZK-I0 have?

A motorised 2.7 to 13.5 mm lens, with a horizontal field of view of 106.3° to 32.5°.

How far can the IPC3635SB-ADZK-I0 see?

Uniview's DORI figures run from 60.8 m to 303.8 m to detect, and 6.1 m to 30.4 m to identify, depending on the lens setting.

How is the IPC3635SB-ADZK-I0 powered?

Uniview lists DC 12 V±25%, PoE (IEEE 802.3af), with max. 7.0 W consumption.

Does the IPC3635SB-ADZK-I0 work at night?

Yes. It has infrared to 40 m with Smart IR.

Is the IPC3635SB-ADZK-I0 suitable for outdoor use?

It is rated IP67 and IK10 and works from -30 °C to 60 °C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
