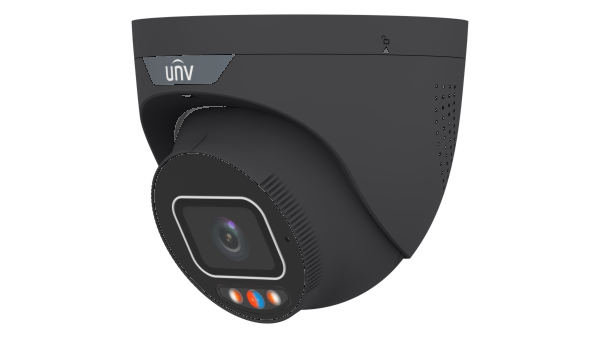

UNIVIEW - IPC3635SS-ADF28KMC-I1-BLACK - 5MP Tri-Guard Dual-light Fixed Turret Network Camera, 2.8mm, Black

IPC3635SS-ADF28KMC-I1-BLACK — 5MP Tri-Guard Dual-light Fixed Turret Network Camera, 2.8mm, Black

The Uniview IPC3635SS-ADF28KMC-I1-BLACK is a 5MP turret network camera with a fixed 2.8 mm, F1.0 lens and a 1/2.7" CMOS sensor. It is the black-housing version of the IPC3635SS-ADF28KMC-I1.

What the IPC3635SS-ADF28KMC-I1-BLACK is for

The 2.8 mm lens gives a 112.8° horizontal field of view. Uniview's DORI distances are 63.0 m to detect and 6.3 m to identify, which suits entrances, driveways and shopfronts where a wide view at short range is wanted.

It has dual light, 850 nm IR and warm light, each to 30 m, and is rated IP67 for outdoor use (working range -30 to 60 degrees C). Minimum illumination is 0.001 lux in colour at F1.0, and 0 lux with the light on. It has a built-in microphone and speaker with two-way audio support, so it can give a spoken warning as well as record sound. The black finish suits dark fascias and soffits where a white camera would stand out.

The intelligent rows list cross line, intrusion, enter area and leave area detection, with false alarm filtering and classification of human, non-motor vehicle and vehicle, plus people flow counting.

Key features

• 5MP maximum resolution, 1/2.7" CMOS sensor, 130 dB WDR
• Fixed 2.8 mm lens, F1.0, 112.8° horizontal view
• Dual light: 850 nm IR and warm light, each to 30 m
• Built-in microphone and speaker, two-way audio; alarm I/O 1/1
• IP67, PoE (802.3af) or 12 V DC, max. 10.0 W
• MicroSD up to 512 GB, ONVIF Profile S, G, T and M
• Black housing

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC through the Ø5.5 mm coaxial plug; maximum draw is 10.0 W. Use a network cable for the run. For recording, add a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC3635SS-ADF28KMC-I1-BLACK with you before you buy — the 2.8 mm field of view, dual light night performance, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the IPC3635SS-ADF28KMC-I1-BLACK the same camera as the white version?

Yes. It shares the specification of the IPC3635SS-ADF28KMC-I1; only the housing colour differs.

What lens does the IPC3635SS-ADF28KMC-I1-BLACK have?

A fixed 2.8 mm, F1.0 lens with a 112.8° horizontal field of view.

How far can the IPC3635SS-ADF28KMC-I1-BLACK see?

Uniview's DORI figures are 63.0 m to detect and 6.3 m to identify.

Is the IPC3635SS-ADF28KMC-I1-BLACK PoE?

Yes, it takes PoE (IEEE 802.3af) or DC 12 V ±25%, with maximum consumption of 10.0 W.

Does the IPC3635SS-ADF28KMC-I1-BLACK have night lighting?

Yes: dual light, 850 nm IR and warm light, each to 30 m, with auto or manual control.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
