UNIVIEW - IPC3638SE-ADF28K-WL-I0 - 8MP ColorHunter Warm Light Fixed Turret Network Camera, 2.8mm

IPC3638SE-ADF28K-WL-I0 — 8MP ColorHunter Warm Light Fixed Turret Network Camera, 2.8mm

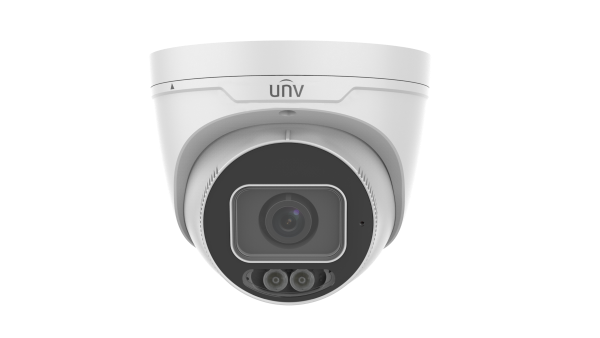

The Uniview IPC3638SE-ADF28K-WL-I0 is a 8MP turret network camera with a fixed 2.8 mm, F1.0 lens and a 1/1.8" CMOS sensor.

What the IPC3638SE-ADF28K-WL-I0 is for

The 2.8 mm lens gives a 113.5° horizontal field of view. Uniview's DORI distances are 63.0 m to detect and 6.3 m to identify, which suits entrances, driveways and shopfronts where a wide view at short range is wanted.

It has warm light to 30 m, and is rated IP67 and IK10 for outdoor use (working range -30 to 60 degrees C). Minimum illumination is 0.0005 lux in colour at F1.0. Supplemental light is warm light only, so night images stay in colour rather than switching to infrared black and white. A built-in microphone is listed, with two-way audio support through the audio I/O.

The intelligent rows list cross line, intrusion, enter area and leave area detection, with false alarm filtering and classification of human, non-motor vehicle and vehicle, plus people flow counting.

Key features

• 8MP maximum resolution, 1/1.8" CMOS sensor, 120 dB WDR
• Fixed 2.8 mm lens, F1.0, 113.5° horizontal view
• Warm light to 30 m for colour images at night, auto/manual control
• Built-in microphone; 1 audio in / 1 audio out; alarm I/O 1/1
• IP67 and IK10, PoE (802.3af) or 12 V DC, max. 11.0 W
• MicroSD up to 512 GB, ONVIF Profile S, G, T and M

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC through the Ø5.5 mm coaxial plug; maximum draw is 11.0 W. Use a network cable for the run. For recording, add a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC3638SE-ADF28K-WL-I0 with you before you buy — the 2.8 mm field of view, warm light night performance, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What lens does the IPC3638SE-ADF28K-WL-I0 have?

A fixed 2.8 mm, F1.0 lens with a 113.5° horizontal field of view.

How far can the IPC3638SE-ADF28K-WL-I0 see?

Uniview's DORI figures are 63.0 m to detect and 6.3 m to identify.

Is the IPC3638SE-ADF28K-WL-I0 PoE?

Yes, it takes PoE (IEEE 802.3af) or DC 12 V ±25%, with maximum consumption of 11.0 W.

Does the IPC3638SE-ADF28K-WL-I0 have night lighting?

Yes: warm light to 30 m, with auto or manual control.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
