IPC544SE-DK-I0 — 4MP HD Intelligent Box Network Camera, Lens Not Included

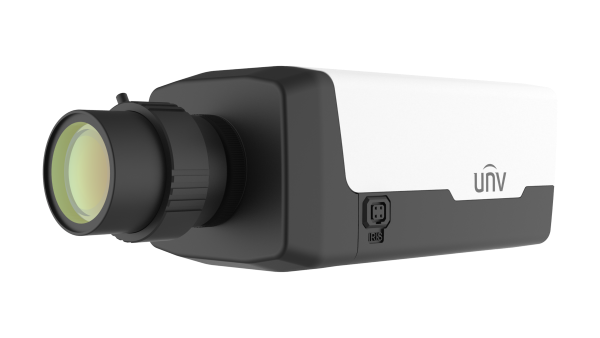

The Uniview IPC544SE-DK-I0 is a 4MP box camera with a C/CS lens mount. It is supplied without a lens, so the lens can be chosen to suit the scene.

What the IPC544SE-DK-I0 is for

It uses a 1/1.8" CMOS sensor with 120 dB WDR. Minimum illumination is Color: 0.0005 Lux (F1.2, AGC ON), BW: 0.0001 Lux (F1.2, AGC ON). The main stream is 4 MP (2688 × 1520) at up to 30 fps.

No IP rating is listed and the working range is -20 °C to 60 °C, so outdoors it needs a suitable housing. Smart intrusion prevention covers cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle). It has 2 alarm inputs, 1 alarm output, audio in and out and an RS485 port.

Key features

• 4MP maximum resolution, 1/1.8" CMOS sensor, 120 dB WDR
• C/CS lens mount, lens not included
• Power: DC 12 V (±25%), AC 24 V (±25%), PoE (IEEE 802.3af); Max. 8 W
• Alarm I/O 2/1, audio I/O, RS485
• Edge storage: MicroSD, up to 512 GB

Full specification

What you will need

A C/CS-mount lens must be bought separately. Power the camera from a PoE switch or NVR PoE port (IEEE 802.3af), or from a 12 V DC or 24 V AC supply via the terminal block; maximum consumption is 8 W. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (up to 512 GB). None of these are supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC544SE-DK-I0 with you before you buy — the lens and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Does the IPC544SE-DK-I0 come with a lens?

No. It has a C/CS lens mount and the lens is bought separately.

How is the IPC544SE-DK-I0 powered?

Uniview lists DC 12 V (±25%), AC 24 V (±25%) or PoE (IEEE 802.3af), with max. 8 W consumption.

Does the IPC544SE-DK-I0 have alarm and audio connections?

Yes. It has 2 alarm inputs, 1 alarm output, one audio input, one audio output and an RS485 port.

Can the IPC544SE-DK-I0 record without an NVR?

It takes a microSD card up to 512 GB and supports ANR and NAS (NFS) network storage. A card is not included.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
