UNIVIEW - IPC6424SR-X25-VF-BLACK - 4MP 25X LightHunter Network PTZ Dome Camera, Black

IPC6424SR-X25-VF-BLACK — 4MP 25X LightHunter Network PTZ Dome Camera, Black

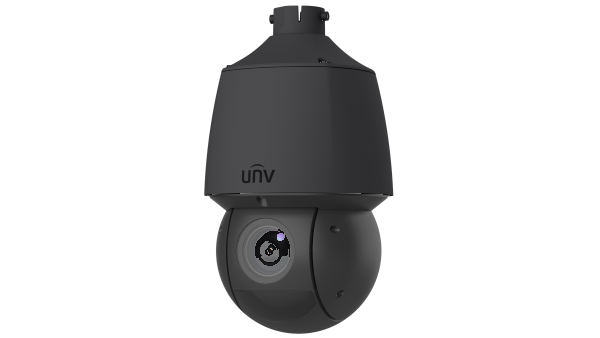

The Uniview IPC6424SR-X25-VF-BLACK is the black-housing version of the IPC6424SR-X25-VF, a 4MP PTZ dome camera with a 25X optical zoom (4.8 to 120 mm) and infrared to 100 m.

What the IPC6424SR-X25-VF-BLACK is for

The lens gives a horizontal field of view of 52.20° to 2.74°. Uniview's DORI figures are 119.3 m to 2475.0 m to detect and 11.9 m to 247.5 m to identify, wide to tele. Pan is 360° endless and tilt -15° to 90°, at up to 200°/s pan. Minimum illumination is 0.003 lux in colour (F1.5, AGC on) and 0 lux with IR.

It is rated IP67 and IK10 with a working range of -40 °C to 70 °C. Auto tracking is supported with human, non-motor vehicle and vehicle filtering. The black finish suits dark fascias where a white dome would stand out.

Key features

• 4MP (2688 × 1520) at up to 30 fps, 1/2.8" CMOS sensor, 120 dB WDR
• 25X optical zoom, 4.8 to 120 mm, 16X digital zoom
• Infrared to 100 m with Smart IR
• 360° endless pan, tilt -15° to 90°, 1024 presets
• Auto tracking; alarm I/O 2/1, audio I/O, RS485
• Power: DC 12 V (±25%, 3 A), PoE+ (IEEE 802.3at); max. 21 W
• IP67, IK10, microSD up to 512 GB; black housing

Full specification

What you will need

Power the camera from a PoE switch or NVR port that supplies PoE+ (IEEE 802.3at), or from a 12 V DC 3 A supply; maximum consumption is 21 W. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (up to 512 GB). A mounting bracket, power supply and recorder are not supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6424SR-X25-VF-BLACK with you before you buy — the zoom range and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the IPC6424SR-X25-VF-BLACK the same camera as the IPC6424SR-X25-VF?

Yes. It shares the published specification of the IPC6424SR-X25-VF; only the housing colour differs.

What zoom does the IPC6424SR-X25-VF-BLACK have?

A 25X optical zoom, 4.8 to 120 mm, with a horizontal field of view of 52.20° to 2.74°.

How is the IPC6424SR-X25-VF-BLACK powered?

DC 12 V (±25%, 3 A) or PoE+ (IEEE 802.3at), with a maximum of 21 W.

What is the IR range of the IPC6424SR-X25-VF-BLACK?

Uniview lists infrared to 100 m at 850 nm, with Smart IR.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
