UNIVIEW - IPC6434LR-X16-VG1 - 4MP 16X Starlight IR Network PTZ Dome Camera

IPC6434LR-X16-VG1 — 4MP 16X Starlight IR Network PTZ Dome Camera

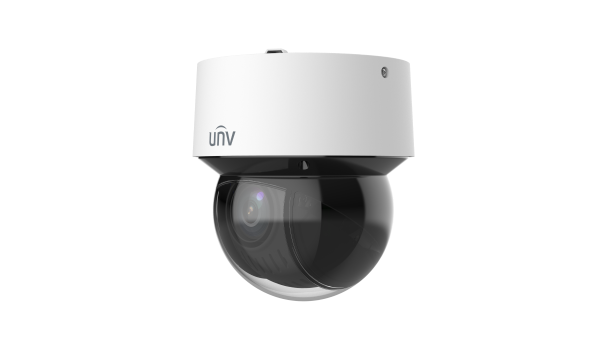

The Uniview IPC6434LR-X16-VG1 is a 4MP PTZ dome camera with a 16X optical zoom (5.5 to 88 mm), 360° endless pan and infrared up to 100 m.

What the IPC6434LR-X16-VG1 is for

The lens gives a horizontal field of view of 50.85° to 3.47°. Uniview's DORI figures are 127.6 m to 2048.4 m to detect and 12.8 m to 204.8 m to identify, wide to tele. Minimum illumination is 0.005 lux in colour (F1.78, AGC on) and 0 lux with IR.

It is rated IP66 and IK10 with a working range of -40 °C to 65 °C. Auto tracking is supported with human and vehicle filtering, and smart intrusion prevention covers cross line and intrusion detection.

Key features

• 4MP (2688 × 1520) at up to 30 fps, 1/2.9" CMOS sensor, 120 dB WDR
• 16X optical zoom, 5.5 to 88 mm
• Infrared up to 100 m with Smart IR
• 360° endless pan at up to 240°/s, tilt -5° to 90°, 1024 presets
• Auto tracking; alarm I/O 2/1, audio I/O, RS485
• Power: DC 12 V (±10%, 3 A), PoE+ (IEEE 802.3at); max. 23 W
• IP66, IK10, microSD up to 512 GB

Full specification

What you will need

Power the camera from a PoE switch or NVR port that supplies PoE+ (IEEE 802.3at), or from a 12 V DC 3 A supply; maximum consumption is 23 W. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (up to 512 GB). A mounting bracket, power supply and recorder are not supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6434LR-X16-VG1 with you before you buy — the zoom range and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What zoom does the IPC6434LR-X16-VG1 have?

A 16X optical zoom, 5.5 to 88 mm, with a horizontal field of view of 50.85° to 3.47°.

How is the IPC6434LR-X16-VG1 powered?

DC 12 V (±10%, 3 A) or PoE+ (IEEE 802.3at), with a maximum of 23 W.

What is the IR range of the IPC6434LR-X16-VG1?

Uniview lists infrared up to 100 m at 850 nm, with Smart IR.

Can the IPC6434LR-X16-VG1 track targets automatically?

Yes. Auto tracking is supported with filtering for humans and vehicles.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
