UNIVIEW - IPC6624SFW-X25-C-VH2 - 4MP 25X Dual-light Network PTZ Camera

IPC6624SFW-X25-C-VH2 — 4MP 25X Dual-light Network PTZ Camera

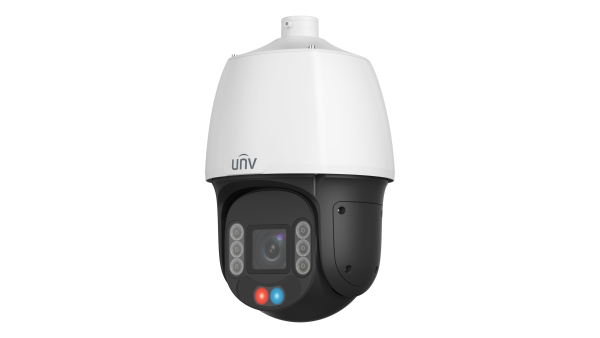

The Uniview IPC6624SFW-X25-C-VH2 is a 4MP PTZ camera with a 25X optical zoom (4.8 to 120 mm), infrared to 250 m and warm light to 100 m, streaming 4 MP at up to 60 fps.

What the IPC6624SFW-X25-C-VH2 is for

The lens gives a horizontal field of view of 53.90° to 3.00°. Uniview's DORI figures are 119.9 m to 2407.5 m to detect and 12 m to 240.8 m to identify, wide to tele. Minimum illumination is 0.003 lux in colour and 0.002 lux in black and white (F1.65, AGC on). Pan is 360° endless and tilt -15° to 90°, at up to 288°/s, and EIS image stabilisation uses a gyroscope.

It is rated IP67, with IK10 anti-vandal protection except the front window, and works from -40 °C to 70 °C. Smart intrusion prevention covers cross line, intrusion, and area enter and leave detection with human, non-motor vehicle and vehicle classification. Uniview lists it as NDAA compliant.

Key features

• 4MP (2688 × 1520) at up to 60 fps, 1/2.8" CMOS sensor, 120 dB WDR
• 25X optical zoom, 4.8 to 120 mm
• Infrared to 250 m and warm light to 100 m
• 360° endless pan, 1024 presets, EIS (gyroscope)
• Built-in speaker, alarm I/O 2/1, audio I/O, RS485
• Power: DC 24 V, AC 24 V or PoE (IEEE 802.3at); max. 21.7 W
• IP67, microSD up to 512 GB

Full specification

What you will need

Power the camera from a PoE switch or NVR port that supplies IEEE 802.3at, or from a 24 V AC or DC supply; maximum consumption is 21.7 W. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (up to 512 GB). A mounting bracket, power supply and recorder are not supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6624SFW-X25-C-VH2 with you before you buy — the zoom range and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What zoom does the IPC6624SFW-X25-C-VH2 have?

A 25X optical zoom, 4.8 to 120 mm, with a horizontal field of view of 53.90° to 3.00°.

How far does the IPC6624SFW-X25-C-VH2 light at night?

Uniview lists infrared to 250 m and warm light to 100 m.

How is the IPC6624SFW-X25-C-VH2 powered?

DC 24 V ±25%, AC 24 V ±25% or PoE (IEEE 802.3at), with a maximum of 21.7 W.

Is the IPC6624SFW-X25-C-VH2 suitable for outdoor use?

Yes. It is rated IP67 and works from -40 °C to 70 °C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
