UNIVIEW - IPC6854ER-X40-VF - 4MP 40X IR Network PTZ Camera, 250 m IR

IPC6854ER-X40-VF — 4MP 40X IR Network PTZ Camera, 250 m IR

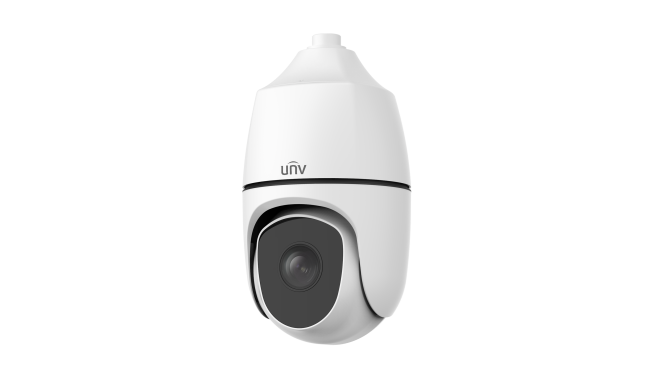

The Uniview IPC6854ER-X40-VF is a 4MP long-range PTZ camera with a 40X optical zoom (5.7 to 228 mm), a 1/1.8" sensor and infrared to 250 m.

What the IPC6854ER-X40-VF is for

The lens gives a horizontal field of view of 59.47° to 2.20°. Uniview's DORI figures are 107.2 m to 3330.6 m to detect and 10.7 m to 333.1 m to identify, wide to tele. Minimum illumination is 0.0005 lux in colour (F1.2, AGC on) and 0 lux with IR. It has EIS image stabilisation (gyroscope), optical defog and heatwave reduction.

It is rated IP66 and IK10, has a heater and works from -40 °C to 70 °C. Smart intrusion prevention covers cross line, intrusion, and area enter and leave detection, and face capture is supported. It has 7 alarm inputs and 2 alarm outputs.

Key features

• 4MP (2688 × 1520) at up to 30 fps, 1/1.8" CMOS sensor, 120 dB WDR
• 40X optical zoom, 5.7 to 228 mm, 16X digital zoom
• Infrared to 250 m with Smart IR
• 360° endless pan, tilt -15° to 90°, 1024 presets
• EIS, optical defog, heatwave reduction
• Power: AC 24 V, DC 24 V or PoE++ (IEEE 802.3bt); max. 61 W
• IP66, IK10, alarm I/O 7/2, microSD up to 512 GB

Full specification

What you will need

Power the camera from a PoE switch or injector that supplies PoE++ (IEEE 802.3bt), or from a 24 V AC or DC supply; maximum consumption is 61 W, so standard PoE and PoE+ ports are not enough. Run it on suitable network cable. For recording, use a compatible NVR fitted with hard drives, or a microSD card in the camera (up to 512 GB). A mounting bracket, power supply and recorder are not supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6854ER-X40-VF with you before you buy — the zoom range and coverage, how the camera will be powered, and which NVR or PoE switch it connects to — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What zoom does the IPC6854ER-X40-VF have?

A 40X optical zoom, 5.7 to 228 mm, with a horizontal field of view of 59.47° to 2.20°.

How far can the IPC6854ER-X40-VF see?

Uniview's DORI figures run from 107.2 m to 3330.6 m to detect and 10.7 m to 333.1 m to identify, with infrared to 250 m.

How is the IPC6854ER-X40-VF powered?

AC 24 V ±25%, DC 24 V ±25% or PoE++ (IEEE 802.3bt), with a maximum of 61 W.

Is the IPC6854ER-X40-VF suitable for outdoor use?

Yes. It is rated IP66 and IK10, has a heater and works from -40 °C to 70 °C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
