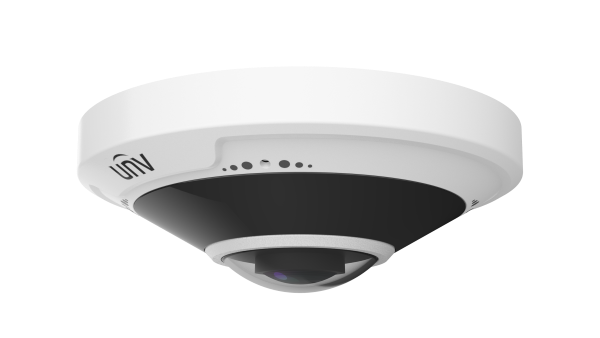

UNIVIEW - IPC815SB-ADF14K-I0 - 5MP Fisheye Fixed Dome Network Camera, 1.4 mm Lens
Product Features
5MP fisheye dome network camera with a fixed 1.4 mm lens (180° view), 10 m IR and built-in dual microphone. Powered by PoE (802.3af) or 12 V DC. Recorder and microSD card are not included.
IPC815SB-ADF14K-I0 — 5MP Fisheye Fixed Dome Network Camera, 1.4 mm Lens
The Uniview IPC815SB-ADF14K-I0 is a 5MP fisheye network camera with a fixed 1.4 mm lens giving a 180° field of view, 10 m of IR and a microSD slot for up to 512 GB.
What the IPC815SB-ADF14K-I0 is for
A fisheye camera covers an open room such as a shop floor, office or reception from one position. The main stream is 5 MP (2592 × 1944) at up to 30 fps, and software decoding offers fisheye, panorama and PTZ-style layouts depending on ceiling, table or wall mounting.
Uniview's DORI figures for the 1.4 mm lens are 31.5 m to detect, 12.6 m to observe, 6.3 m to recognise and 3.2 m to identify, so detail is captured close to the camera. It has 850 nm IR to 10 m with Smart IR, 120 dB WDR and a built-in dual microphone, and is rated IP66 and IK10.
Key features
- 5MP 1/2.8" CMOS sensor, 5 MP (2592 × 1944) at up to 30 fps
- Fixed 1.4 mm F2.0 lens, 180° field of view
- 850 nm IR to 10 m with Smart IR
- 120 dB WDR, 2D/3D DNR, digital defog
- Built-in dual microphone, two-way audio, 1/1 alarm I/O
- PoE (IEEE 802.3af) or 12 V DC, max 8.5 W; microSD up to 512 GB; IP66, IK10
Full specification
| Camera | |
| Max Resolution | 5 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000s |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 1.4 mm |
| Field of View (H) | 180° |
| Iris Type | Fixed |
| Iris | F2.0 |
| Field of View (V) | 180° |
| Field of View (D) | 180° |
| Lens Type | Fixed |
| Video | |
| Main Stream | 5 MP (2592 × 1944), max. 30 fps |
| Sub Stream | Fisheye View: 1080P (1920 × 1080): max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Third Stream | Fisheye View: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| DORI | |
| DORI Distance (Lens) | 1.4 mm |
| DORI Distance (Detect) | 31.5 m |
| DORI Distance (Observe) | 12.6 m |
| DORI Distance (Recognize) | 6.3 m |
| DORI Distance (Identify) | 3.2 m |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 10 m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Live View Display | |
| Software Decoding | Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ,360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ,360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Smart IR | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Statistical Analysis | Heat map (Working with management platform) |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Built-in dual-mic |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP66 (IEC 60529-2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 8.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø125 mm × 43.7 mm (Ø × H) |
| Weight | 0.36 kg |
| Material | Metal + Plastic |
| Working Environment | -30°C to 60°C, Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30°C to 60°C, Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
What you will need
Power it from a PoE (IEEE 802.3af) port on a PoE switch or NVR, or a 12 V DC supply with a Ø5.5 mm plug (max 8.5 W). Use network cable on its 10/100 Mbps port. For recording add a compatible NVR or a microSD card of up to 512 GB. Neither is supplied.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the IPC815SB-ADF14K-I0 with you before you buy — mounting position, the views you need, and how to power and record it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
What field of view does the IPC815SB-ADF14K-I0 have?
Its fixed 1.4 mm lens gives 180° horizontally, vertically and diagonally.
Does the IPC815SB-ADF14K-I0 have IR?
Yes, 850 nm IR with a stated distance of 10 m and auto or manual control.
How is the IPC815SB-ADF14K-I0 powered?
PoE (IEEE 802.3af) or DC 12 V ±25% via a Ø5.5 mm plug, with maximum consumption of 8.5 W.
Does it record audio?
Yes, it has a built-in dual microphone and supports two-way audio through its audio input and output.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | IPC815SB-ADF14K-I0 |
|---|---|
| Manufacturer | Uniview |
| Colour | White |
| Max Resolution | 5MP |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Min. Illumination | Colour: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR |
| WDR | 120 dB |
| Lens Type | Fixed |
| Max. IR Range | Up to 10 m |
| Protection Level, Ingress Protection | IP66 |
| Operating Temperature | -30°C to 60°C |
| Local Storage | MicroSD, up to 512 GB |
| Indoor/Outdoor | Indoor / Outdoor |
